Product Overview

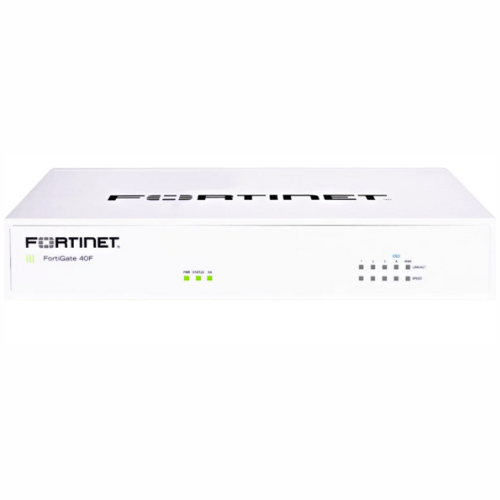

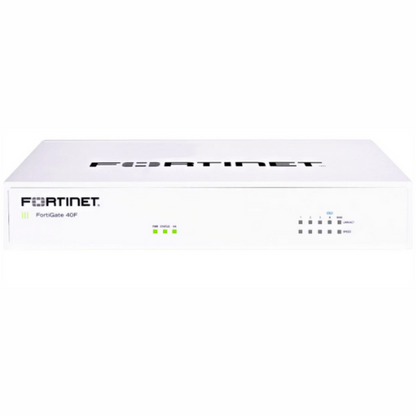

FortiGate FG-40F is a small next-generation firewall (NGFW) which is meant to serve small businesses, branch offices and distributed enterprise locations which demand powerful security in a space-saving form factor. FortiOS powers the FG-40F and has a purpose-built Security Processing Unit (SPU), making it a single appliance with a combination of performance-based firewalling, embedded threat protection, and secure SD-WAN. Its energy efficiency, fanless design and simplified deployment make it provide enterprise-level security where space, noise and power consumption have to be minimised.
Key Features and Benefits
-
Secure Your Branch or Office: Protect users and applications with next-generation firewalling, intrusion prevention, and deep SSL inspection that are all controlled through one device.
-
Fast VPN Performance: Using IPsec VPN, throughput to 4.4 Gbps, ensuring that there is a reliable, high-speed connection between locations.
-
One SD-WAN: Network Unity SD-WAN can deliver intelligent load balancing and steering of traffic through applications, improving user experiences and minimising the use of expensive MPLS circuits.
-
Small and quiet: Designed to be Fanless, the desktop-friendly hardware will use as little as 13.4 W on average, which is suitable for small or noiseless locations.
-
Scalable Interconnection: Achieving 5 gigabit RJ-45 connections with dedicated WAN, LAN, and FortiLink (switch/AP interconnection) connections.
-
Future-Ready Protection: Enjoy the upkeep of defences with no lapse of time and get constant protection intelligence and signature upkeep through FortiGuard Security Services.
Technical Specifications
|
Feature |
Specification |
|
Model |
FortiGate FG-40F |
|
Form Factor |
Desktop, fanless design |
|
Interfaces |

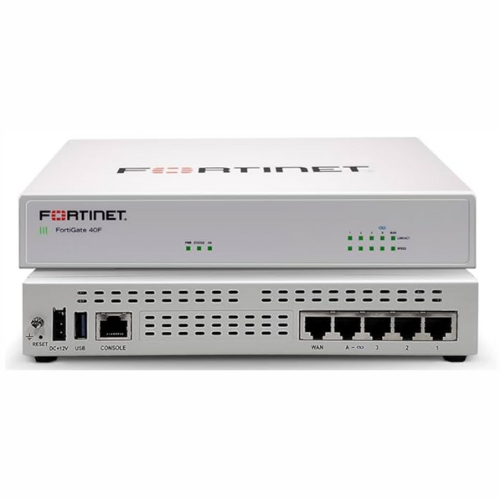

5 × GE RJ-45 ports (1 WAN/DMZ, 3 Internal LAN, 1 FortiLink) |
|
Additional Interfaces |
1 × USB (3G/4G modem support), 1 × RJ-45 console port |
|
Firewall Throughput (1518/512/64 byte, UDP) |
Up to 5 Gbps |
|
IPS Throughput |
1 Gbps |
|
NGFW Throughput |
800 Mbps |
|
Threat Protection Throughput |
600 Mbps |
|
IPsec VPN Throughput |
4.4 Gbps |
|
SSL Inspection Throughput |
310–320 Mbps |
|
Concurrent Sessions |
700,000 |
|
New Sessions per Second |
35,000 |
|
Average Power Consumption |
13.4 W |
|
Maximum Power Consumption |
~15–16 W |
|
Dimensions (H × W × D) |
38.5 × 216 × 160 mm (1.5 × 8.5 × 6.3 in) |
|
Operating Temperature |
0 °C to 40 °C |
|
Power Input |
External AC adapter, 100–240V AC, 50–60 Hz |
Product Information
The FortiGate FG-40F makes the best of the enterprise-level security available to small locations and branch offices. It has done it through the integration of firewalling, intrusion prevention, application control, web filtering, and anti-malware in one small-sized appliance that does not require several standalone appliances.
The FG-40F supports rigorous network traffic with a firewall throughput of up to 5 Gbps and supports the 4.4 Gbps IPsec VPN performance of establishing a fast site-to-site encrypted connection. The online organisations utilising encrypted traffic may utilise its feature of ensuring the inspection of the traffic through the use of over 300 Mbps, which is possible without any loss in visibility.
The FG-40F can run quietly with a fanless design and draws very little power, and can fit easily into the narrowest of work areas. There are five integrated Gigabit Ethernet ports, which make it easier to incorporate the network, and it can be extended to Fortinet switches and access points using FortiLink.
Combined with FortiGuard Security Services, the FG-40F is constantly updated with the latest threat data to promote active protection against the development of malware, ransomware, and sophisticated attacks. Together with FortiOS, the machine provides integrated policy control and easy-to-configure security and SD-WAN capabilities, and is a powerful yet simple-to-manage platform to run growing networks.
