Product Description

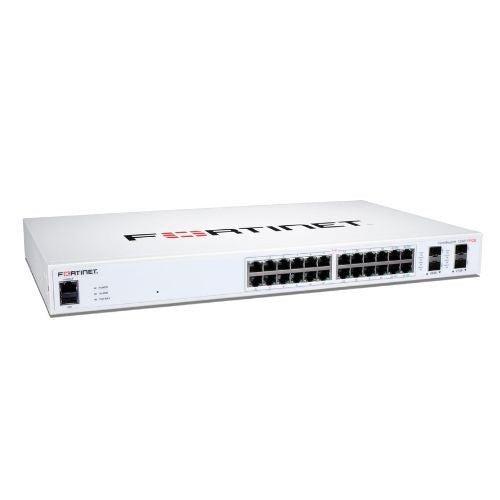

Fortinet FS-124F-FPOE This is a full-managed Layer 2+ switch available in the high-performance modification to effectively serve the current business network where high security, scalability, and efficiency are required. This is the model of the Forticonet FortiSwitch Secure Access which is a part of the FortiSwitch Secure Access family that better fit into the FortiGate appliances forming a complete and secure suite.
The FS-124F-FPOE (24 Gigabit Ethernet ports with Power over Ethernet, PoE/PoE, PoE, PoE) will have the desired flexibility and power to run access points, IP phones, and surveillance cameras. The switch merchant correlates the strength of switching capability, shrewd traffic direction and FortiLink to manage the switch infrastructure centrally.
Being used in a branch office, a school, or a medium-sized business, the FS-124F-FPOE guarantees simplified operations, less control burden as well as uniformity of network security across areas.
Key Features
-
RJ-45 Ports, 24x 10/100/1000 rugged. Full PoE/PoE+.
-
Uplink aggregation 40G (10G x 4) meristal ports.
-
Standardized 370W power of PoE to load various powered devices.
-
FortiLink immigration to integrated single management with FortiGate firewalls.
-
The layer 2, Layer 3 Lite capabilities in order to achieve higher network flexibility.
-
Design smart energy-efficient, low power consumption.
-
1U Rackmount System chosen when deploying in electricypt enterprises and branches.
Technical Specifications
|
Category |
Specification |
|
Model Number |
FS-124F-FPOE |
|
Switch Type |
Managed Gigabit PoE Switch |
|
Total Ports |
24 × 10/100/1000 RJ-45 ports + 4 × 10G SFP+ uplinks |
|
PoE Standards Supported |
IEEE 802.3af / IEEE 802.3at (PoE/PoE+) |
|
PoE Power Budget |
370 Watts |
|
Switching Capacity |
128 Gbps |
|
Forwarding Rate |
95 Mpps |
|
Layer Support |
Layer 2 and Layer 3 Lite |
|
MAC Address Table |
16K entries |
|
VLANs Supported |
Up to 4,094 VLANs |
|
Jumbo Frame Size |
9,216 bytes |
|
Power Supply |
Internal AC power supply |
|
Management Options |
Web GUI, CLI, SNMP, FortiLink via FortiGate |
|
Security Features |
802.1X authentication, Access Control Lists (ACLs), Storm Control |
|
Redundancy |
Spanning Tree Protocol (STP), Rapid STP, Multiple STP |
|
Cooling System |
Smart fan with temperature control |
|
Form Factor |
1U rack-mountable |
|
Dimensions (W × D × H) |
440 × 250 × 44 mm |
|
Weight |
3.6 kg (approx.) |
|
Operating Temperature |
0°C to 50°C |
|
Storage Temperature |
-40°C to 70°C |
|
Operating Humidity |
10% to 90% non-condensing |
|
Certifications |
CE, FCC, RoHS, UL |
|
Warranty |
Limited Lifetime Warranty (varies by region) |
Why Choose the Fortinet FS-124F-FPOE?
The FS-124F-FPOE is characterised by high balance of power, scalability and simple management. When it is integrated with FortiGate security appliances the network administrators not only can handle security policies and switch configurations in a single interface but also substitute complexity and enhance visibility.
The FS-124F-FPOE is among the best models in the industry to provide reliable energy savings through the use of power sources that remain stable to serve a wide range of networked devices without compromising its throughput and security. Regardless of the installation of IP surveillance, VoIP, or Wi-Fi solutions, it provides a near performance, and vertical network integration with this switch.
