The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Key Features
- Designed for installations from desktops to wiring closets
- Ideal for SD-Branch deployments
- Centralized security and access management from FortiGate interfaces with FortiLink
- Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network
- Supports non-FortiLink deployments through onboard GUI, API, or command line configuration
- Up to 48 ports in a compact 1 RU form factor
- Stackable up to 300 switches per FortiGate, depending on model
- Supports Wire-speed switching and Store and Forward forwarding mode
Dimensions
| Height | 4.5 inches |
|---|---|
| Width | 17.5 inches |
| Length | 22 inches |
| Weight | 13.7 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Rack-mountable |
| Power Consumption | 895.70 W |
| Brand Name | Fortinet |
| Expansion Slot Type | SFP+ |
| Country of Origin | Taiwan |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Product Family | FortiSwitch 100 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4 |
| Redundant Power Supply Supported | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | FS148FFPOE |
| Manufacturer Website Address | http://www.fortinet.com |
| Manufacturer | Fortinet, Inc |
| Product Model | FS-148F-FPOE |

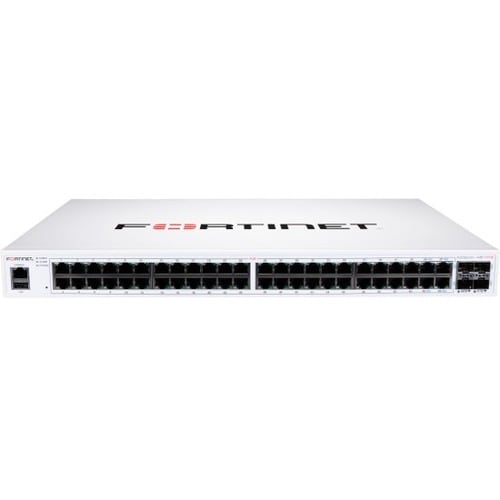

| Product Name | FortiSwitch FS-148F-FPOE Ethernet Switch |
| Product Line | FortiSwitch |
| Product Series | 100 |
| Brand Name | Fortinet |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Manageable | Yes |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Layer Supported | 2 |
| Weight (Approximate) | 10.32 lb |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 12.2" |
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
| PoE Budget | 740 W |
