The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
Key Features
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Optical Fiber media support ensures maximum convenience and great usability
- Quickly and easily set up a wired network with 48 networking ports
- Effectively increases available bandwidth on your network
Dimensions
Height | 4.1 inches |
---|---|
Width | 17.2 inches |
Length | 21.6 inches |
Weight | 13.2 pounds |
Product Type | Ethernet Switch |
Power Source | Power Supply |
Layer Supported | 2 |
Form Factor | Rack-mountable |
Power Consumption | 476.30 W |
Brand Name | Fortinet |
Expansion Slot Type | SFP+ |
Country of Origin | Taiwan |
Manageable | Yes |
Ethernet Technology | 10 Gigabit Ethernet |
Ethernet Technology | Gigabit Ethernet |
Product Family | FortiSwitch 100 |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Total Number of Network Ports | 48 |
PoE (RJ-45) Port | Yes |
Total Number of Expansion Slots | 4 |
Redundant Power Supply Supported | No |
Product Type | Ethernet Switch |
Manufacturer Part Number | FS148FPOE |
Manufacturer Website Address | http://www.fortinet.com |
Manufacturer | Fortinet, Inc |
Product Model | FS-148F-POE |

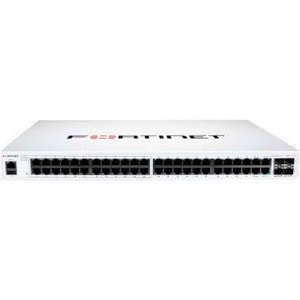

Product Name | FortiSwitch 100 FS-148F-POE Ethernet Switch |
Product Line | FortiSwitch |
Product Series | 100 |
Brand Name | Fortinet |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Total Number of Expansion Slots | 4 |
Modular | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE |
Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
Manageable | Yes |
Network Technology | 10GBase-X |
Network Technology | 10/100/1000Base-T |
Media Type Supported | Twisted Pair |
Media Type Supported | Optical Fiber |
Country of Origin | Taiwan |
Layer Supported | 2 |
Weight (Approximate) | 10.32 lb |
Height | 1.7" |
Width | 17.3" |
Depth | 12.2" |
Compatible Rack Unit | 1U |
Number of Power Supplies Supported | 1 |
PoE (RJ-45) Port | Yes |
Redundant Power Supply Supported | No |
PoE Budget | 370 W |
