Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with10/100/1000Base-T Ethernet networks, thefiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network.It provides versatile connectivity to your existing networks and devices, allowing you tomaximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLCis backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Key Features
- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation

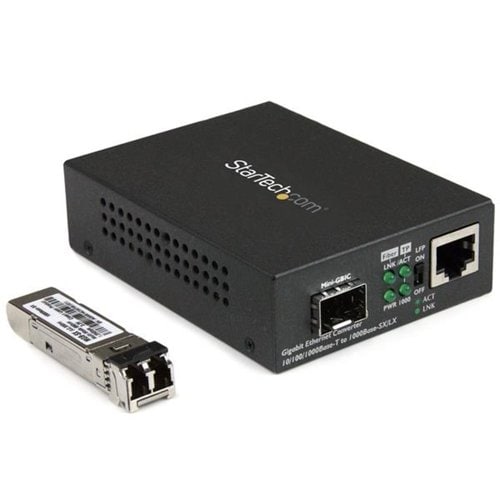

- 850nm LC multimode Gigabit fiber connection using the included SFP transceiver
- 550m range on fiber optic interface
- Link Fault Pass (LFP) supported
- Durable metal housing
- Supports IEEE 802.1q Tag VLAN pass through
- Auto MDIX
- 9K Jumbo Frame supported
Dimensions
| Height | 2.75 inches |
|---|---|
| Width | 5.5 inches |
| Length | 11.2 inches |
| Weight | 1.53 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Power Source | AC Adapter |
| Form Factor | Wall Mountable |
| Form Factor | Desktop |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-T |
| Brand Name | StarTech.com |
| Country of Origin | Taiwan |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| TAA Compliant | Yes |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MCM1110MMLC |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m |
| Brand Name | StarTech.com |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of LC Ports | 1 |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-LX |
| Weight (Approximate) | 7.10 oz |
| Height | 1" |
| Width | 2.8" |
| Depth | 3.7" |
| Plug/Connector Type | Type N |
