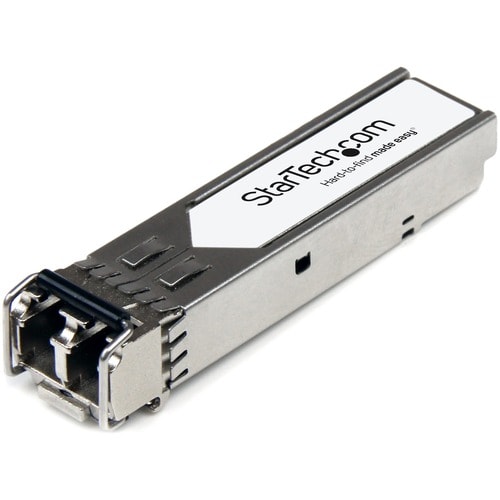

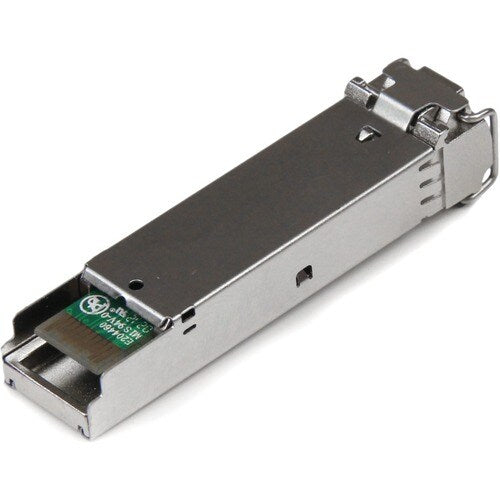

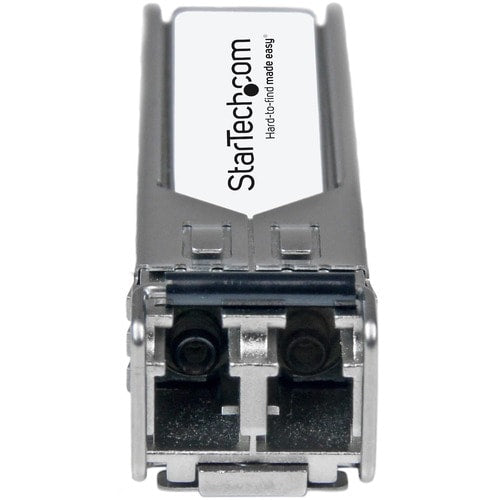

The J9151AST is an HP J9151A compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi) .
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Key Features
- Enjoy flexibility and scalability with data transfer rate of up to 10 Gbps with 10 Gigabit Ethernet technology
- Optical Fiber media support ensures maximum convenience and great usability
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- SFP+ offers enhanced dependability with maximum productivity
- SFP+ with optical network application/usage for reliability and maximum efficiency
- Hot-pluggable form factor for your convenience and simplicity of usage
- 10GBase-LR network technology for convenient, easy sharing of data and information over the network with maximum internet usage feasibility
Dimensions
| Height | 1.3 inches |
|---|---|
| Width | 3.98 inches |
| Length | 3.27 inches |
| Weight | 0.63 pounds |
| Product Type | SFP+ |
| Form Factor | Hot-swappable |
| Form Factor | Hot-pluggable |
| Network Technology | 10GBase-LR |
| Brand Name | StarTech.com |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Product Type | SFP+ |
| Manufacturer Part Number | J9151A-ST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | HP J9151A Compatible SFP+ Transceiver Module - 10GBASE-LR |
| Brand Name | StarTech.com |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Total Number of Ports | 1 |
| Network Technology | 10GBase-LR |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Compatibility |
|
| Weight (Approximate) | 0.05 lb |
| Height | 0.5" |
| Width | 0.6" |
| Depth | 2.2" |
