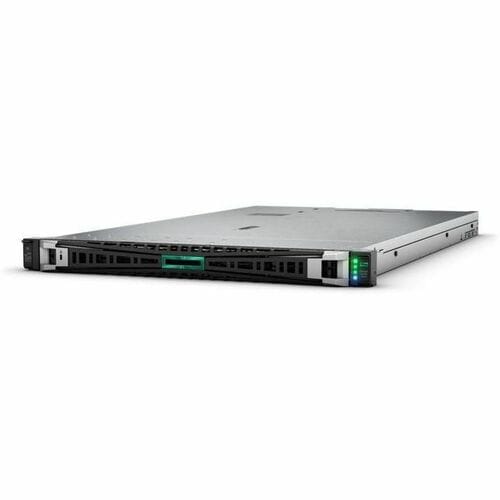

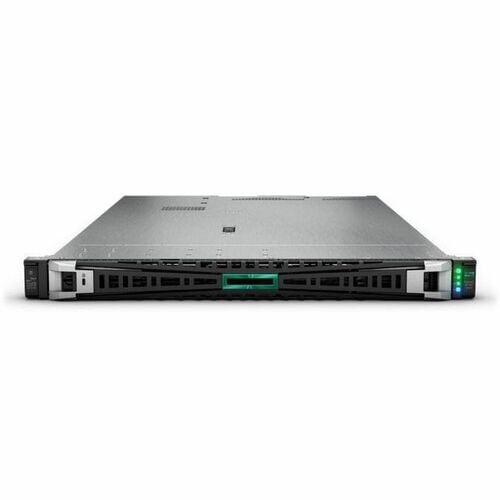

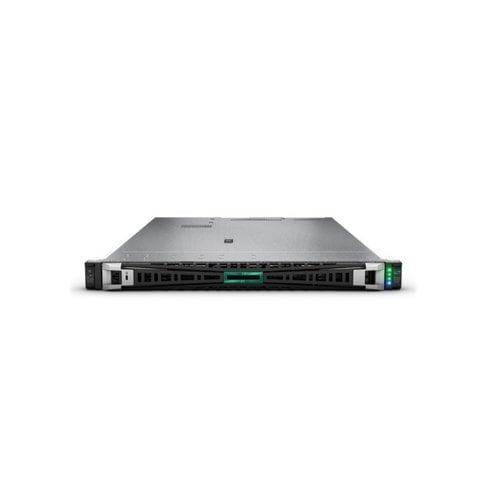

HPE ProLiant DL360 Gen11 8 SFF server with one Intel® Xeon® Silver 4509Y processor, 64 GB DDR5 RDIMM memory, Broadcom MR408i-o storage controller, two 480 GB SATA SSDs, and two HPE 1000W Flex Slot Titanium Hot Plug Power Supplies
Key Features
- Powered by 5th Gen Intel® Xeon® Scalable processors that supports up to 64 cores & 385W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 5600 MHz.
- 16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements.
- Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots.
- Supports Liquid Cooling Modules for highest thermal design points (TDPs).
Dimensions
| Height | 9.25 inches |
|---|---|
| Width | 23.6 inches |
| Length | 38.5 inches |
| Weight | 51.45 pounds |
| Product Type | Server |
| Maximum Memory Supported | 8 TB |
| Standard Memory | 64 GB |
| Chipset | Intel C741 |
| Form Factor | Rack |
| Processor Speed | 2.60 GHz |
| Processor Type | Xeon Silver |
| Controller Type | Serial Attached SCSI (SAS) |
| Controller Type | Serial ATA |
| Rack Height | 1U |
| Brand Name | HPE |
| Memory Technology | DDR5 SDRAM |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Environmentally Friendly | Yes |
| Processor Manufacturer | Intel |
| Redundant Power Supply | Yes |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| RAID Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| VGA | Yes |
| Maximum Power Supply Wattage | 1000 W |
| Product Family | ProLiant DL360 Gen11 |
| Total Solid State Drive Capacity | 960 GB |
| Energy Star | Yes |
| Limited Warranty Duration | 3 Year |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controller Type | Serial ATA |
| Controller Type | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Controller Model | MR408i-o |
| Product Type | Server |
| Manufacturer Part Number | P71676-005 |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL360 Gen11 Server |
| Product Line | ProLiant |
| Product Series | DL360 Gen11 |
| Brand Name | HPE |
| Number of External 5.25" Bays | 1 |
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 9 |
| Total Number of Expansion Slots | 2.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | Slot 1 x16 PCIe 5.0 - Full Height; Slot 2 x16 PCIe 5.0 - Low Profile |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 6 |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 2 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Weight (Approximate) | 45.06 lb |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 29.7" |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1000 W |
| Processor Type | Xeon Silver |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 5th Gen |
| Cache | 22.50 MB |
| Processor Speed | 2.60 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 5th Gen |
| Solid State Drive Configuration | 2 x 480GB |
| Total Solid State Drive Capacity | 960 GB |
| Number of Solid State Drives | 2 |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
