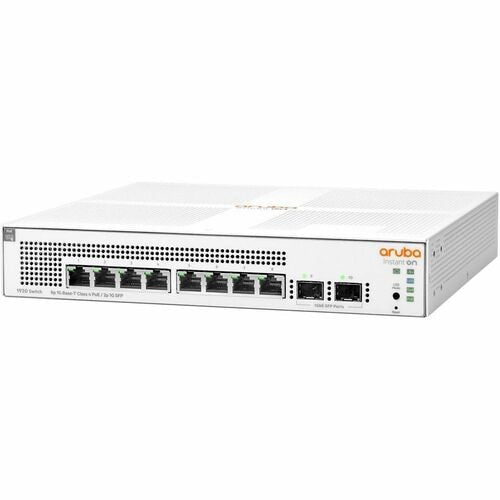

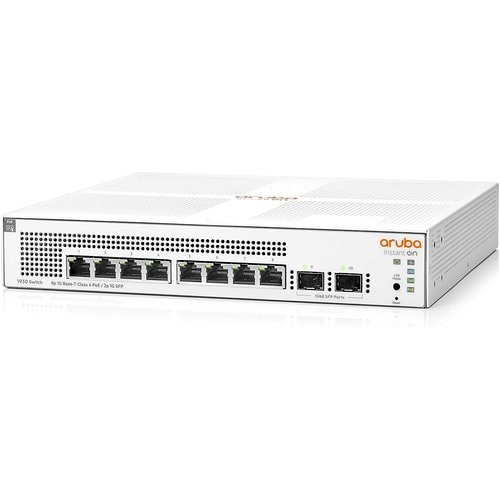

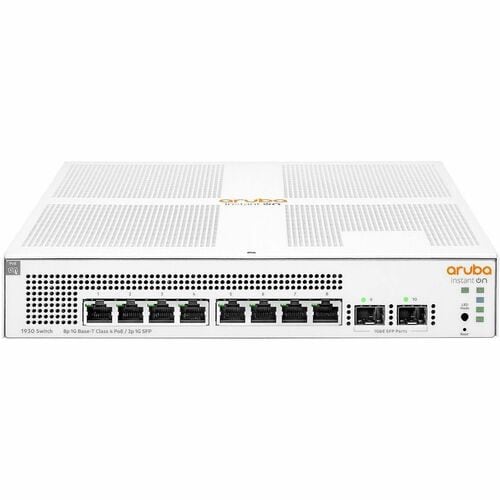

Aruba Instant On 1930 switches are advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses and SMBs looking for high performance networking that is easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. This model supports 10 active ports -- eight 10/100/1000 copper Ethernet RJ45 ports and two 1-Gigabit SFP-style uplink slots. Power over Ethernet both PoE and PoE+ can operate on any of its eight RJ45 ports, with a total PoE budget of 124 Watts.
Using either the Instant On mobile app or its cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. Also available is a comprehensive local web interface. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. Advanced features include VLANs, 802.1X radius-based network login, three levels of Spanning Tree protocol, and Layer 3 static routing, among others. And all of this is included in the price of the hardware - there are no hidden subscription or licensing fees. All are backed by Aruba's Limited Lifetime Warranty.
Key Features
- High performance yet affordable Gigabit switches built for small businesses and SMBs, with simple-to-use cloud management at no added cost.
- This model: 8 x 10/100/1000 RJ45 ports plus two (2) dedicated 1G SFP slots for fiber uplinks or additional ports. (SFP transceivers separately sold)
- Power over Ethernet on 8 ports. PoE power budget of 124 Watts.
- Shares common app and cloud-based administration with Instant On Wi-Fi Access Points, for Wi-Fi optimized networking.
- The series offers a complete portfolio of switch model choices. Choose from seven models -- 10-port, 28-port, 52-port models without and with Class 4 PoE+ Power over Ethernet.
- Guard your network from unwanted or unauthorized access with switch features such as IEEE 802.1X and VLANs
- Use a mobile app to easily setup, monitor and manage your network
- Limited Lifetime Support provides 24X7phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.
Dimensions
| Height | 5.3 inches |
|---|---|
| Width | 13.7 inches |
| Length | 18.9 inches |
| Weight | 7.75 pounds |
| Product Type | Ethernet Switch |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Power Consumption | 150 W |
| Brand Name | HPE |
| Expansion Slot Type | SFP (mini-GBIC) |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 10 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 2.0 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL681A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | Instant On 1930 8G Class4 PoE 2SFP 124W Switch |
| Brand Name | HPE |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Manageable | Yes |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Layer Supported | 3 |
| Weight (Approximate) | 2.56 lb |
| Height | 1.7" |
| Width | 10" |
| Depth | 10" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 124 W |
