The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
PRODUCT DIFFERENTIATORS | AOS-CX - a modern software system
The Aruba CX 6000 Switch Series is based on AOSCX, a modern, database-driven operating system that is built on a modular Linux architecture. With the CX 6000 series, the benefits of the AOS-CX architecture is extended to small enterprise deployments providing the following unique capabilities:
- Easy access to all network configuration state information
- REST APIs for fine-grained programmability of network tasks
- A micro-services architecture that enables full integration with other workflow systems and services
- All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
Aruba ASICs - programmable innovation
Based on over 30 years of continuous investment, Aruba's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The Aruba CX 6000 is based on the Aruba ASIC architecture.
Access layer performance
The Aruba CX 6000 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
- Up to 104 Gbps in non-blocking bandwidth and up to 77.3 Mpps for forwarding
- Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network applications
Key Features
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Management flexibility with support for Aruba Central1 , easy-to-use Web GUI, CLI, and Aruba NetEdit
- Simple deployment with Zero Touch Provisioning
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Dimensions
| Height | 4.59 inches |
|---|---|
| Width | 18.6 inches |
| Length | 22.15 inches |
| Weight | 15.2 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Wall Mountable |
| Form Factor | Cabinet Mount |
| Form Factor | Rack-mountable |
| Form Factor | Surface Mount |
| Power Consumption | 49.70 W |
| Brand Name | HPE |
| Expansion Slot Type | SFP (mini-GBIC) |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | CX 6000 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4.0 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | R9Y03AABA |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | R9Y03A |

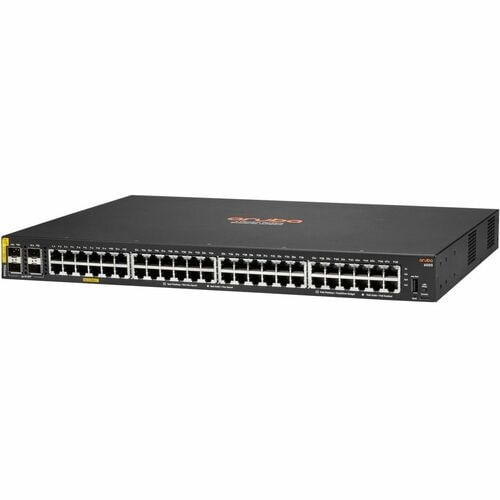

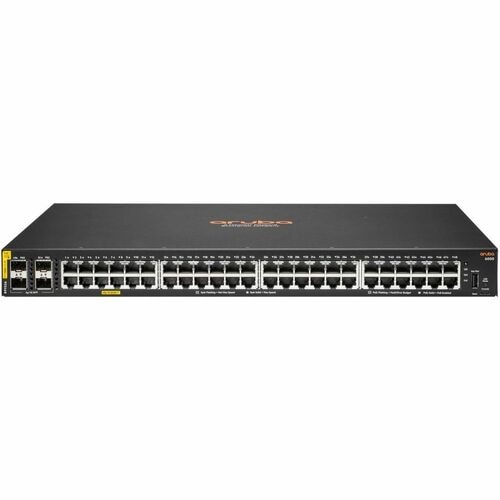

| Product Name | 6000 48G CL4 4SFP 740W Switch |
| Product Series | CX 6000 |
| Brand Name | HPE |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 100/1000Base-X |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Layer Supported | 3 |
| Weight (Approximate) | 10.36 lb |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 12.7" |
| Compatible Rack Unit | 1U |
| Product Color | Gray |
| Color Family | Gray |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
