Ultra-high-speed performance for high-density small businesses.
Perfect for gaming, boutique hotels, tech start-ups and professional offices.
The rise of the remote and hybrid workplace has placed increased pressure on business networks. Existing Wi-Fi infrastructure is struggling to support the explosion of devices and bandwidthhungry applications - all contributing to spotty video calls and sluggish download speeds.

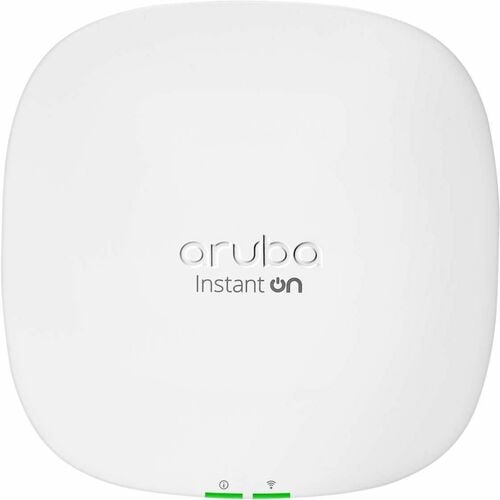

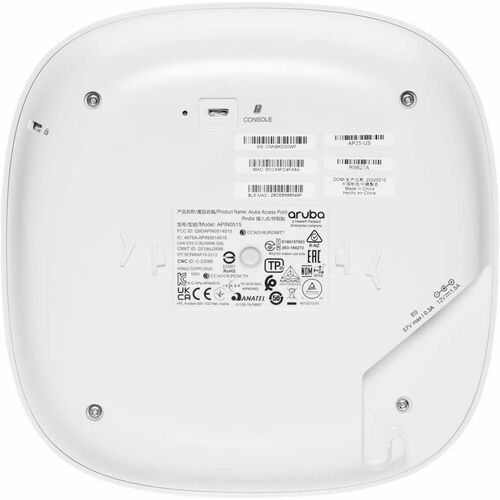

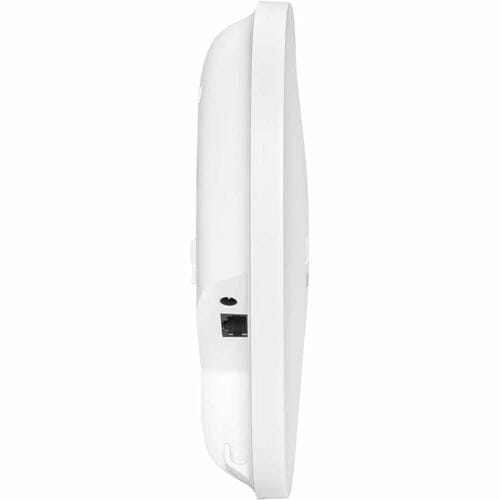

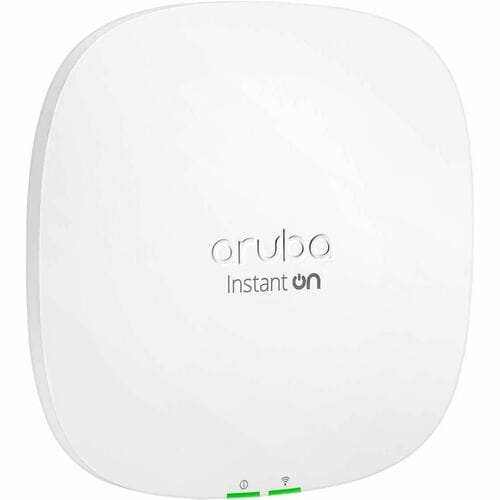

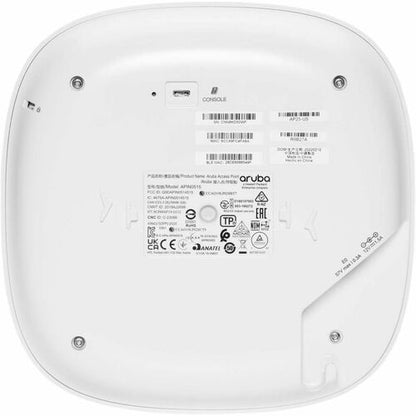

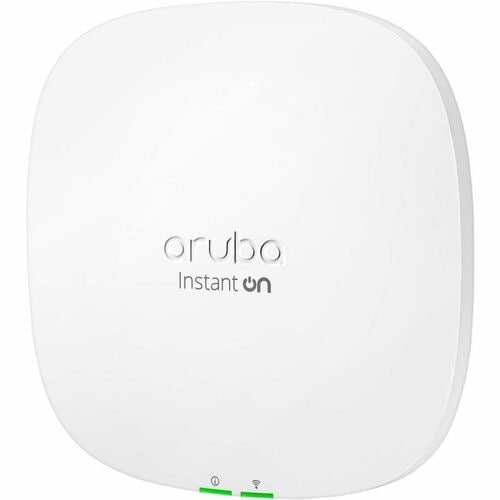

The Aruba Instant On AP25, a 4x4 Wi-Fi 6 access point, is designed to meet the increasing volume of connected devices. Delivering superior performance, coverage, and speed at a competitive price, the AP25 is the perfect access point for small and growing businesses.
The Wi-Fi Certified 6TM AP25 delivers faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. AP25 improves efficiency and reduces congestion for networks with many connected devices, making it ideal for high-density environments. And with 4x the capacity of 802.11ac access points, the AP25 provides exceptional user experience, allowing businesses to serve more customers with higher speed and less congestion.
Features of the AP25 include orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and target wake time (TWT). With up to 4 spatial streams (4SS) and 160MHz channel bandwidth (HE160), the AP25 provides groundbreaking wireless capabilities for businesses looking to boost performance and future-proof their networks.
Key Features
- Ultra-fast 802.11ax, 4x4:4
- 2.5 Gigabit Ethernet uplink port
- 160MHz client bandwidth support
- Mesh backhaul operating at 160MHz
- Wi-Fi CERTIFIED 6TM (Wi-Fi 6)
- MU-MIMO performance
- Smart mesh Wi-Fi support
- Integrated Bluetooth Easy-to-use web and mobile
- app for setup and management
- Secure guest Wi-Fi with simple setup
Dimensions
| Height | 3.4 inches |
|---|---|
| Width | 9.4 inches |
| Length | 9.9 inches |
| Weight | 2.85 pounds |
| Product Type | Wireless Access Point |
| Network Band | Dual Band |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Form Factor | Flush Mount |
| Form Factor | Ceiling Mountable |
| Wireless Transmission Speed | 5.30 Gbit/s |
| Brand Name | HPE |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Antenna Form Factor | Internal |
| Wireless LAN Standard | 802.11ax |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Product Family | Instant On |
| Indoor/Outdoor | Indoor |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Product Type | Wireless Access Point |
| Manufacturer Part Number | R9B32A |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | AP25 |
| Product Name | Instant On AP25 Wireless Access Point |
| Product Line | Instant On |
| Brand Name | HPE |
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Communication Protocols | PPPoE |
| Wi-Fi Generation | Wi-Fi 6 |
| Weight (Approximate) | 1.71 lb |
| Height | 1.8" |
| Width | 7.9" |
| Depth | 7.9" |
| Antenna Form Factor | Internal |
| Network Band | Dual Band |
| Wireless Transmission Speed | 5.30 Gbit/s |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Wireless LAN Standard | 802.11ax |
| Encryption Standard | WPA2 |
| Encryption Standard | WPA3 |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Indoor/Outdoor | Indoor |
