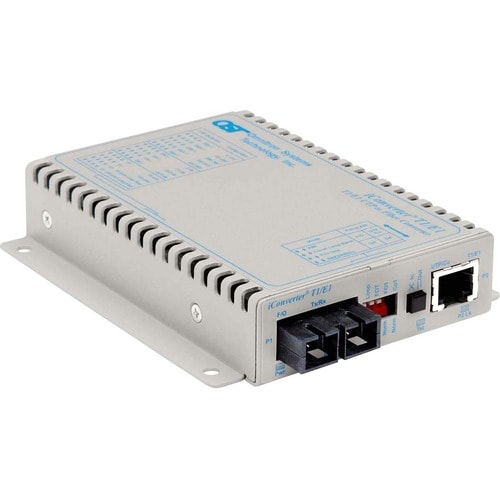

The iConverter T1/E1 media converter provides standard T1 (1.544Mbps) or E1 (2.048Mbps) copper-to-fiber conversion and can be used to extend the demarcation point between service provider and networking equipment. T1/E1 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
Designed as a transparent repeater, the iConverter T1/E1 supports standard T1, E1 and Primary Rate Interface (PRI), voice or data. The converter also supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of T1/E1 line codes and line build-out.
The iConverter T1/E1 is available as a compact, unmanaged standalone unit with an RJ48 interface or as a chassis managed plug-in module with RJ48 or coax interface.
Designed as a transparent repeater, the iConverter T1/E1 supports standard T1, E1 and Primary Rate Interface (PRI), voice or data. The converter also supports AMI, B8ZS and HDB3 line codes. DIP-switches provide easy configuration of T1/E1 line codes and line build-out.
The iConverter T1/E1 is available as a compact, unmanaged standalone unit with an RJ48 interface or as a chassis managed plug-in module with RJ48 or coax interface.
Key Features
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
- The Rack-mountable provides convenient installation
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Dimensions
| Height | 3.4 inches |
|---|---|
| Width | 8.1 inches |
| Length | 8.9 inches |
| Weight | 1.55 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 5.01 km |
| Form Factor | Desktop |
| Form Factor | External |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | T1/E1 |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Product Family | iConverter T1/E1 |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8702-0-D |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 8702-0-x |
| Product Name | iConverter T1/E1 SC Multimode 5km Standalone US AC Powered |
| Package Type | Retail |
| Product Line | iConverter |
| Product Series | T1/E1 |
| Brand Name | Omnitron Systems |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Maximum Distance Supported | 5.01 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Package Contents |
|
| Certifications & Standards | Compliance: UL, CE, FCC Class A |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | T1/E1 |
| Carrier Supported | T-carrier/E-carrier |
| Weight (Approximate) | 8 oz |
| Height | 1" |
| Width | 3.1" |
| Depth | 4.8" |
