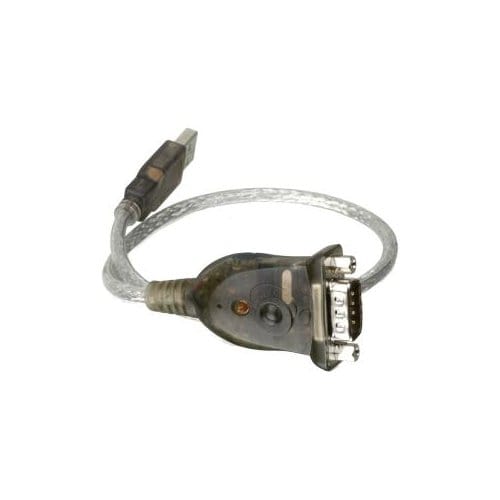

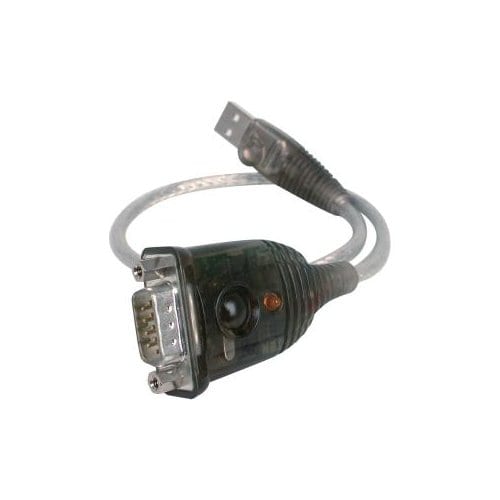

The USB PDA/Serial Adapter (GUC232A) provides you with an external serial (DB- 9 male) Plug-n-Play connection for use with computers, notebooks, and hand held computing devices that support USB. The PDA/USB Serial Adapter has a standard type A USB plug.
This USB PDA/Serial Adapter provides PDAs, digital cameras, modems, and ISDN terminal adapters with high quality serial connections at a data transfer rate of over 115Kbps. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers. This eliminates the setup hassle found with traditional serial port connections. This device also supports energy saving suspend and resume operations.
This USB PDA/Serial Adapter provides PDAs, digital cameras, modems, and ISDN terminal adapters with high quality serial connections at a data transfer rate of over 115Kbps. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers. This eliminates the setup hassle found with traditional serial port connections. This device also supports energy saving suspend and resume operations.
More from the Manufacturer
Key Features
- Add one serial port to your PC or Mac via USB connector
- Converts older serial devices to USB connection
- USB 1.1 and USB 2.0 compatible
- 16" cable length
- Supports the RS-232 Serial interface
- Supports automatic handshake mode
- Up to 230Kbps data transfer rate
- Supports remote wakeup and power management
- Provides a 96 byte buffer for each upstream and downstream data transfer
- Easy Installation
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 5 inches |
| Length | 6.5 inches |
| Weight | 0.28 pounds |
| Cable Length | 1.17 ft |
| Product Type | Data Transfer Cable |
| Brand Name | IOGEAR |
| Country of Origin | China |
| Cable Type | Serial/USB |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | USB 2.0 Type A - Male |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | GUC232A |
| Manufacturer Website Address | http://www.iogear.com |
| Packaged Quantity | 1 |
| Manufacturer | IOGEAR, Inc |
| Product Name | USB to Serial RS-232 Adapter |
| Package Type | Retail |
| Brand Name | IOGEAR |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Weight (Approximate) | 0.10 lb |
| Length | 16.6" |
| Limited Warranty | 3 Year |
| Cable Length | 1.17 ft |
| Conductor | Copper |
| Data Transfer Rate | 230 kbit/s |
| Cable Type | Serial/USB |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | USB 2.0 Type A - Male |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector on Second End Details | 1 x 4-pin USB 2.0 Type A - Male |
