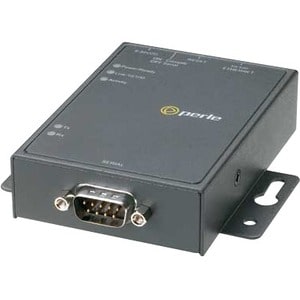

The Perle IOLAN DG1 Device Server provides a robust and flexible solution for integrating serial devices into an Ethernet network. Designed for applications requiring reliable serial-to-Ethernet connectivity, it offers advanced TrueSerial® technology for authentic serial communication. Its compact and durable steel enclosure supports various mounting options (tabletop, wall, or DIN rail), making it suitable for diverse industrial and commercial environments. The IOLAN DG1 simplifies deployment with its Plug & Play installation utility and features a software-selectable RS-232/422/485 interface, eliminating the need for manual configuration switches. Perle's Device Management software ensures centralized control and monitoring of multiple units, maximizing uptime. Robust 15Kv ESD protection provides enhanced reliability in demanding conditions. With support for features like TruePort software for remote serial port access and the possibility of device-specific plug-ins, the IOLAN DG1 ensures compatibility with a wide range of serial devices.
Dimensions
| Height | 2.6 inches |
|---|---|
| Width | 6.5 inches |
| Length | 10.1 inches |
| Weight | 1 pounds |
| Product Type | Device Server |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Form Factor | Panel-mountable |
| Brand Name | Perle |
| Network Standard | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Serial Port | Yes |
| Product Family | IOLAN |
| Media Type Supported | Twisted Pair |
| Number of Serial Ports | 1 |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Device Server |
| Manufacturer Part Number | 04031774 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | DS1 G9 |
| Product Name | IOLAN DS1 G9 Serial Device Server |
| Product Line | IOLAN |
| Brand Name | Perle |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Number of Serial Ports | 1 |
| Media Type Supported | Twisted Pair |
| Standard Memory | 512 MB |
| Package Contents |
|
| Certifications & Standards | Emissions:
Immunity:
Safety:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Standard | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Weight (Approximate) | 8.11 oz |
| Height | 0.9" |
| Width | 3.5" |
| Depth | 2.5" |
| Processor Speed | 600 MHz |
