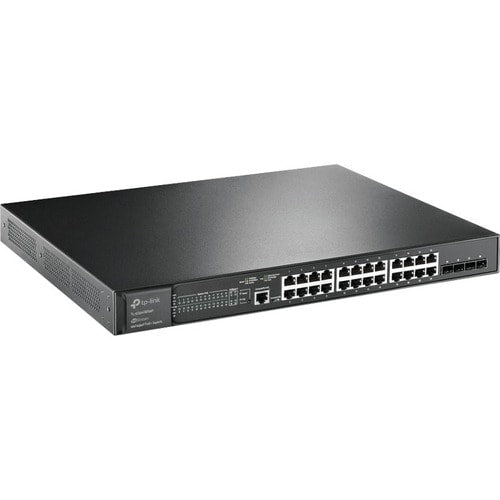

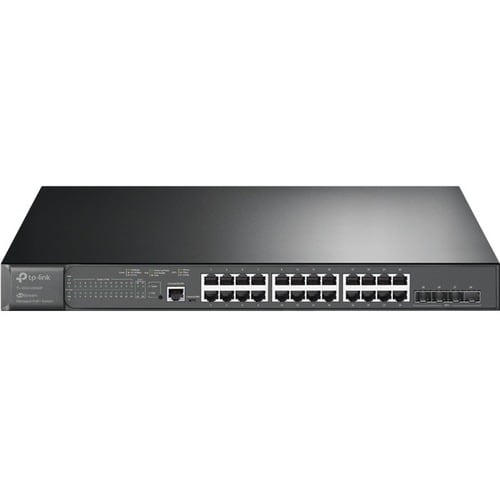

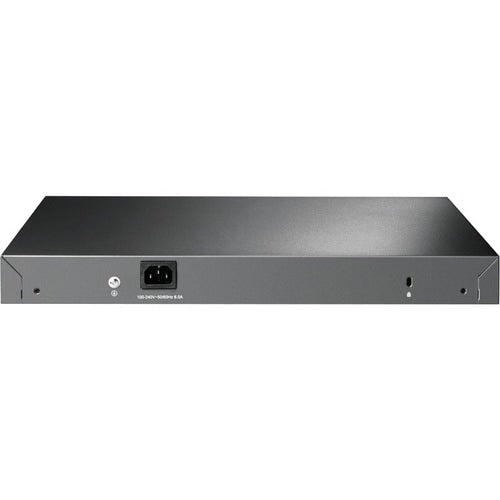

10G Uplink Managed Switch with 24 PoE+ Ports for a Complete Omada Network
-
10G Lightning-Fast Uplink Connection
4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity -
PoE+ Output
24× Gigabit PoE+ Ports with Total 384 W Power Budget -
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network -
Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications
Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Software-Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
-
Hassle-Free Cloud or On-Premises Controllers
-
Multi-Site Cloud Management
-
Zero-Touch Provisioning (ZTP)
-
Intelligent Monitoring
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Key Features
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- Flexible PoE Port Configuration: 24× PoE+(802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port, total PoE budget 380W, w/ 4× 10GE SFP+ slots.
- Integrated into Omada SDN: Omada's Software Defined Networking (SDN) platform integrates network devices including switches, access points & gateways with multiple control options offered - Omada Hardware controller, Omada Software Controller or Omada Cloud-based controller(Contact TP-Link for Cloud-based controller plan details). Standalone mode also applies.
- Cloud Access: Remote cloud access and Omada app brings centralized cloud management of the whole network from different sites-all controlled from a single interface anywhere, anytime.
- Enhance Network Security: Advanced security features include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more.
- L2+ Features: Static Routing helps route internal traffic for more efficient use of network resources.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Dimensions
| Height | 4 inches |
|---|---|
| Width | 17.25 inches |
| Length | 21 inches |
| Weight | 12 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Power Consumption | 34.40 W |
| Brand Name | TP-Link |
| Expansion Slot Type | SFP+ |
| Country of Origin | China |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Product Family | JetStream |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TL-SG3428XMP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SG3428XMP |
| Product Name | JetStream TL-SG3428XMP Ethernet Switch |
| Product Line | JetStream |
| Brand Name | TP-Link |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 3 |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 13" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 384 W |
