Product Overview

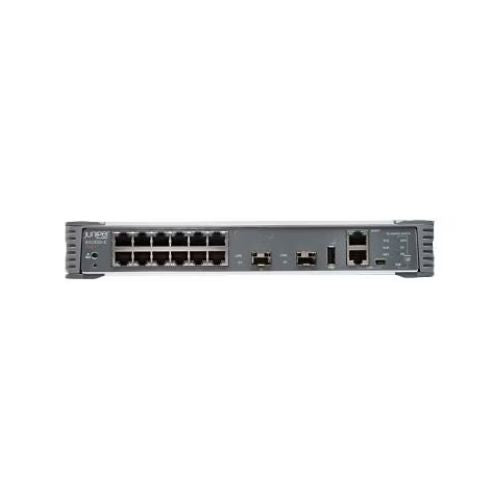

The Juniper EX2300-C-12P is a small, fanless, Layer 3 managed Ethernet switch, which is utilised in high-performance connections that are provided in space-constrained areas like branch offices, retail stores, classrooms, and hospitality areas. Although it is a tiny device, it offers enterprise-level functionality, silent functioning, and a high level of security, which makes it a perfectly suitable device in the context of the modern and distributed network.
This model has 12 Gigabit Ethernet PoE+ ports, and hence it can be used to power up IP phones, wireless access points, as well as surveillance cameras using the Ethernet cable. Virtual chassis technology enables a maximum of four EX2300 switches to be interconnected and administered as one logical device, making them easy to administer and expand.
The EX2300-C-12P is a combination of power efficiency, quiet operation, and reliable performance within a single small device, which guarantees quality and the ease of operation that Juniper has been known to provide.
Key Features
-
12 Gigabit Ethernet PoE+ Ports: Supporting the connectivity of networked devices with data and power.
-
Fanless, Silent Design: It is the perfect choice in a sensitive, noisy environment such as an office or a classroom.
-
Layer 3 Switching Support: Allows routing and segmentation of a network.
-
Virtual Chassis Technology: Build up to four switches in one management and scale.
-
Large PoE+ Power Budget: POE provides up to 124W of PoE+ + over the combined load of connected devices.
-
Advanced Security: MAC limiting, DHCP snooping and dynamic ARP inspection.
-
Energy Efficient: Meets Energy Efficient Ethernet (EEE) standards.
-
Simple to manage: managed through Juniper Junos OS, CLI, SNMP, or Juniper Mist Cloud.
-
Small Size/Form Factor: Desktop or wall-mounted system to allow flexibility in deployment.
-
Commercial Performance: Best in branch networks, with the need to be enterprise aggressive.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Juniper Networks |
|
Series |
EX2300-C |
|
Model |
EX2300-C-12P |
|
Product Type |
Managed Layer 3 Ethernet Switch |
|
Total Ports |
12 x 10/100/1000Base-T (PoE+) |
|
Uplink Ports |
2 x 1/10G SFP+ |
|
Switching Capacity |
56 Gbps |
|
Forwarding Rate |
41.6 Mpps |
|
PoE Standard |
IEEE 802.3af / 802.3at (PoE+) |
|
Total PoE Power Budget |
124W |
|
Layer Support |
Layer 2 / Layer 3 |
|
Virtual Chassis Support |
Up to 4 members |
|
Flash Memory |
2 GB |
|
RAM |
2 GB |
|
Management Interface |
CLI, SNMP, Junos Space, Juniper Mist Cloud |
|
Security Features |
MACsec, DHCP Snooping, 802.1X Authentication, Dynamic ARP Inspection |
|
Operating System |
Junos OS |
|
Cooling System |
Fanless |
|
Form Factor |
Desktop / Wall-Mountable |
|
Dimensions (H x W x D) |
1.7 x 10.6 x 9.4 in |
|
Weight |
5.3 lbs (approx.) |
|
Power Supply |
Internal |
|
Power Consumption |
146W (maximum) |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Warranty |
Limited Lifetime Warranty |
