Product Overview

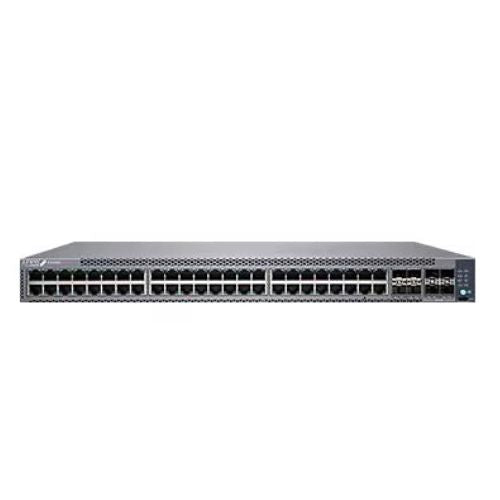

Juniper EX4100-48P is a managed switch engine Ethernet switch of the next generation, targeted at fulfilling the high-performance enterprise and campus networks. Having 48 PoE+ Gigabit Ethernet ports and a high-speed uplink, it provides a better network, flexibility, and power usage. It is based on Juniper EX Series architecture and supports cloud-ready environments, Mist AI integration, and provides better network visibility, automation, and security.
The EX4100-48P is ideal as an access layer and aggregation layer and adds simplification to network management by providing intent-based operations and zero-touch provisioning (ZTP). Its Power over Ethernet Plus (PoE+) also allows direct powering of the devices connected with it, such as IP cameras, access points, and VoIP phones. The EX4100 series is engineered to be more reliable and scalable to provide long-term operation in strenuous IT environments.
This switch also comes with redundant power supply, advanced Layer 2 and Layer 3 routing protocols, and Virtual Chassis technology, which enables various switches to work as a single logical unit, thus making it suitable in the current enterprise network architecture.
Key Features
-
48 PoE+ Ports PoE+: Supports IEEE 802.3at PoE+ with up to 30W per port.
-
10-Gigabit Uplink Ports: Allow rapid transfer of data and elastic connectivity to the uplink.
-
Layer 3 Switching: Provides support for the advanced routing protocols to handle the enterprise-level traffic.
-
Virtual Chassis Technology: Stack several switches into one manageable one.
-
High Performance: The High Performance is created to provide high-speed and dependable data transfer over enterprise networks.
-
Cloud-Ready Management: Cloud-Ready with Juniper Mist Cloud to autonomous network functions.
-
Improved Security: includes MACsec encryption, 802.1X authentication, and secure access controls.
-
Redundant Power Alternatives: Provides resiliency against failure and also reduces downtimes.
-
Small Form Factor: 1U rack-mountable form factor fits any space-constrained setting.
-
Energy Efficient: Adheres to the Energy Efficient Ethernet standards of lower energy consumption.
Technical Specifications
|
Feature |
Specification |
|
Brand |
Juniper Networks |
|
Model |
EX4100-48P |
|
Product Type |
Managed Layer 3 Ethernet Switch |
|
Port Configuration |
48 x 10/100/1000BASE-T PoE+ Ports |
|
Uplink Ports |
4 x 10 Gigabit Ethernet SFP+/SFP28 |
|
Switching Capacity |
680 Gbps |
|
Forwarding Rate |
505 Mpps |
|
PoE Standard |
IEEE 802.3af / 802.3at (PoE+) |
|
Maximum PoE Power Budget |
Up to 1440W |
|
Layer Support |
Layer 2 and Layer 3 |
|
Stacking Capability |
Virtual Chassis Technology |
|
Management Interface |
Web, CLI, SNMP, Juniper Mist Cloud |
|
MAC Address Table Size |
32,000 entries |
|
Jumbo Frame Support |
Up to 9216 bytes |
|
MTBF |
Over 250,000 hours |
|
Form Factor |
1U Rackmount |
|
Power Supply |
Redundant Hot-Swappable |
|
Cooling |
Front-to-back airflow |
|
Dimensions (H x W x D) |
1.73 x 17.36 x 15.7 in (44 x 441 x 398 mm) |
|
Weight |
14.5 lbs (6.6 kg) |
|
Warranty |
Limited Lifetime Warranty |
