Product Overview

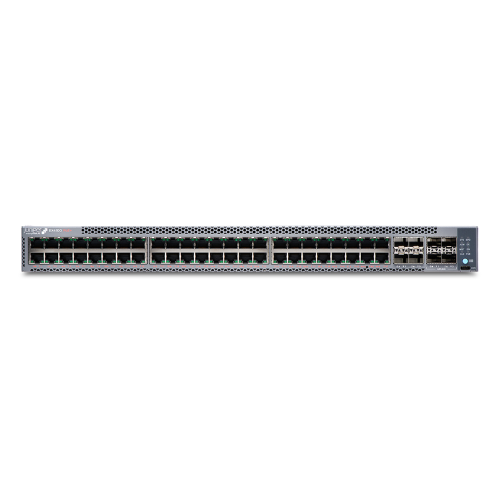

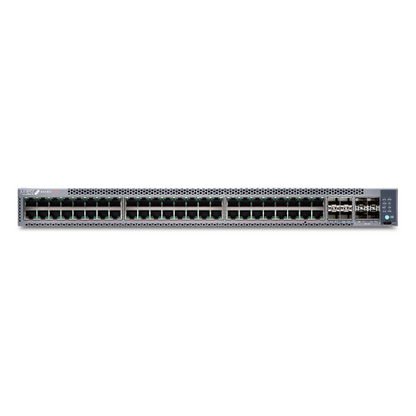

The Juniper EX4100-48T is a 48-port Gigabit Ethernet switch, which is a high-performance switch designed to suit the type of network of the enterprise campus, branch offices, and data centers. It is a strong and stable mix of Layer 2 and Layer 3, sophisticated security solutions, and cloud-enabled solutions, which is why it will be in the best interest of organizations that require scalable and reliable network solutions.
Key Features and Benefits
-
High-Density Port Configuration: The EX4100-48T supports 48 10/100/1000BASE-T ports, which offer a wide range of connection possibilities to the devices of the end-users, providing a convenient connection to the network.
-
Enhanced Uplink: The switch has 4 x 10GbE SFP+ uplinks and 4 x 25GbE SFP28 stacking/ uplink ports; this enables rapid transfer of data and effective network growth.
-
Cloud-Ready Architecture: Juniper Mist AI and the EX4100-48T provide the ability to manage the network in a simplified way, as it provide better visibility and automated processes and issue solutions.
-
Extensive Security: MACsec AES256 encryption is supported, which gives integrity and confidentiality to data over the network.
-
Virtual Chassis Technology: Enables up to 10 EX4100 switches to communicate as one device, making network management and scalability easier.
-
Strongish Performance: A switching throughput of 188 Gbps (unidirectional) and forwarding throughput of 279 Mpps, which provides the capacity to handle data in the most cost-effective way with the least latency.
Technical Specifications
|
Feature |
Specification |
|
Ports |
48 x 10/100/1000BASE-T |
|
4 x 10GbE SFP+ Uplink Ports |
|
|
4 x 25GbE SFP28 Stacking/Uplink Ports |
|
|
CPU |
1.7 GHz ARM Processor |
|
Memory |
4 GB DRAM (ECC) |
|
8 GB Flash Storage |
|
|
MAC Address Table Size |
64,000 entries |
|
Jumbo Frame Support |
Up to 9216 bytes |
|
Layer 2 Features |
VLANs, Spanning Tree Protocols, Link Aggregation |
|
Layer 3 Features |
Static Routing, RIP, OSPF |
|
Security Protocols |
MACsec AES256, 802.1X, RADIUS, TACACS+ |
|
Stacking Support |
Virtual Chassis (up to 10 switches) |
|
Form Factor |
1U Rack-Mountable |
|
Power Supply |
1 x AC PSU (JPSU-150-AC-AFO) |
|
Cooling |
Redundant Fans |
|
Dimensions (H x W x D) |
1.75 x 17.3 x 16.5 in (4.45 x 44 x 42 cm) |
|
Weight |
5.00 kg (11.02 lbs) |
Product Information
The Juniper EX4100-48T is designed to support the needs of contemporary enterprise networks. Its port configuration, giving it a high density, ensures the end-user devices have good connectivity as well as the advanced uplink features that provide the bandwidth required by the end-user devices in data-intensive applications. The combination with Juniper Mist AI expands visibility and automation of the network, decreasing the complexity of network management. Security is of the first priority, and such features as MACsec AES256 encryption protect the integrity of the data. The Virtual Chassis technology provides the capability to scale as organizations are able to add more infrastructure to their network. The EX4100-48T is a trusted and effective solution to the enterprise networking needs with the help of its well-developed performance rates and its compact 1U size.
