Product Overview

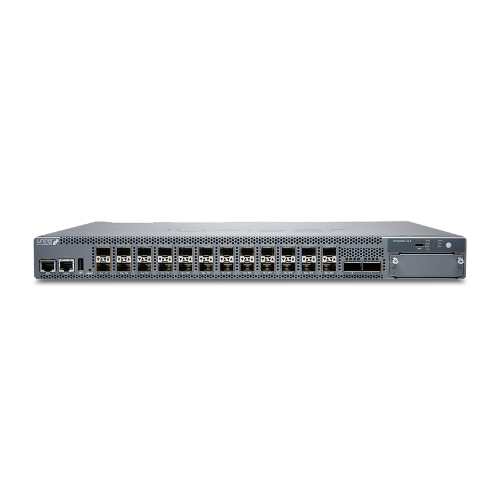

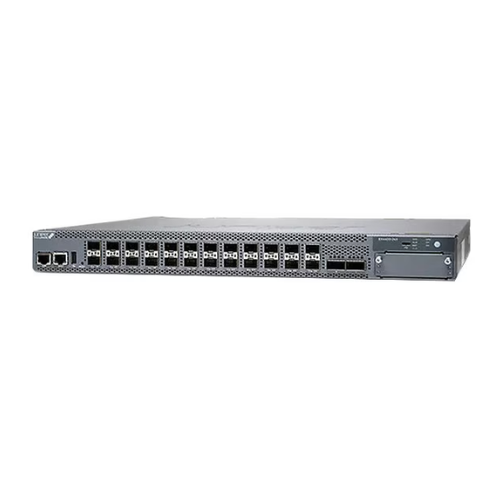

The Juniper EX4400-24X is a 1RU, high-performance fixed-configuration Ethernet switch that is designed to meet enterprise access and aggregation deployments. It supports high-speed, 10GbE SFP+ connectivity on 24 ports, which will offer reliability to servers, storage systems, and uplinks to the core networks. The EX4400-24X has been created to scale and be flexible, and follows Layer 2 and Layer 3 features and Virtual Chassis technology, allowing multiple switches to be configured to be a single logical device. Its architecture is low-latency and energy-efficient, which makes it a perfect solution for organizations looking to have a robust and future-ready network infrastructure.
Key Features and Benefits
High-Density 10GbE connectivity: A 10GbE connector of 24 SFP+ ports is provided to support high-bandwidth servers and storage devices, and facilitates the free flow of data in a network.
Flexible Uplink Alternatives: With 4 further 10GbE or 40GbE QSFP+ uplinks, this is designed to allow the network to be expanded as required.
Advanced Layer 2/3 Functionality: Supports VLAN tagging, aggregation of links, as well as dynamic routing protocols (OSPF, RIP, BGP) to facilitate optimization of network functionality.
Virtual Chassis Technology: Enables as many as 10 EX4400 switches to be managed as one logical device, making them easy to manage and offering greater redundancy of the network.
Consistent, Fast, and Predictable Performance, Non-blocking architecture guarantees predictable high-speed packet delivery to meet the requirements of demanding enterprise applications.
Energy-Efficient Design: Smart use of power saves operational expenses while keeping the performance at 100%.
Technical Specifications
|
Feature |
Specification |
|
10GbE Ports |
24 x SFP+ |
|
Uplink Ports |
4 x 10GbE/40GbE QSFP+ |
|
Switching Capacity |
660 Gbps |
|
Forwarding Rate |
490 Mpps |
|
Layer 2/3 Routing |
VLANs, link aggregation, OSPF, RIP, BGP |
|
Virtual Chassis Members |
Up to 10 |
|
Power Supply |
Dual hot-swappable AC or DC options |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Dimensions (H x W x D) |
1.75 x 17.3 x 16.5 in (4.45 x 44 x 42 cm) |
|
Weight |
17 lbs (7.7 kg) |
Product Information
Juniper EX4400-24X is a combination of high port density, flexible uplink, and advanced Layer 2/3 capabilities, capable of providing a strong solution to access and aggregation layers in the enterprise. Its Virtual Chassis enables network administrators to monitor various switches as one device to simplify the process and enhance resiliency. Non-blocking low-latency architecture provides the best performance to the critical applications, whereas intelligent power management makes operations cost-effective. The EX4400-24X is a scalable, high-performance, and future-proofed network infrastructure designed to support organisations with a need for a future-ready, secure, and efficient network infrastructure.
