Product Overview

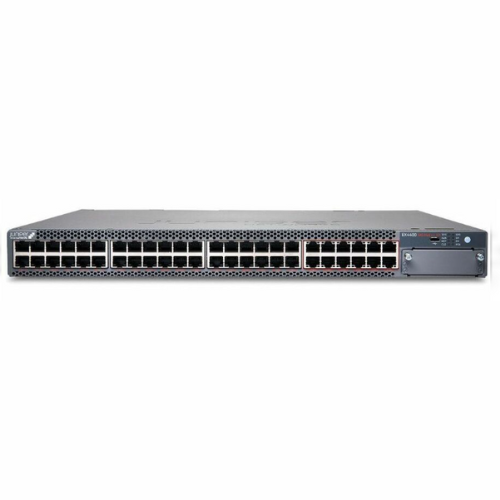

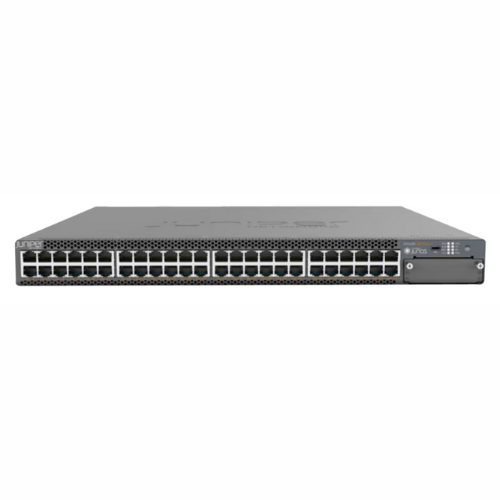

The Juniper EX4400-48MP is a high-performance, multigigabit switch that features an Ethernet implementation suitable for Enterprise Campus, branch office, and data center access. It was meant to support both Layer 2 and Layer 3 connectivity with high-bandwidth capabilities, as well as a high PoE capacity and secure environment, and it is compatible with the latest devices, including Wi-Fi 6/7 access points, security cameras, and collaboration endpoints. The EX4400-48MP is artificial intelligence-enabled automation, real-time monitoring, and simpler operations seamlessly integrated with Juniper Mist cloud management, which allows IT organizations to expand the networks without having any reservations.
Technical Specifications
|
Feature |
Specification |
|
Access Ports |
48 × multigigabit ports (12 × 100M/1/2.5/5/10GbE, 36 × 100M/1/2.5GbE) |
|
Uplink/Stacking Ports |
2 × 100GbE QSFP28 (default) Optional: 4 × 10GbE SFP+ or 4 × 25GbE SFP28 module |
|
PoE/PoE++ Capacity |
IEEE 802.3af/at/bt Up to 90W per port Total PoE budget: 2200W (dual PSU) |
|
Switching Capacity |
880 Gbps |
|
Forwarding Rate |
660 Mpps |
|
Virtual Chassis |
Up to 10 interconnected EX4400 switches |
|
Security |
MACsec AES-256 on all user ports |
|
Layer Support |
Full Layer 2 and Layer 3 EVPN-VXLAN support |
|
Management |
Juniper Mist Wired Assurance Marvis Virtual Assistant |
|
Form Factor |
1U rack-mountable |
|
Power/Fan Options |
Redundant, hot-swappable PSUs and fans |
Product Information
Juniper EX4400-48MP is an access switch with next-generation switching capabilities, enterprise-level reliability, scalability, and security. It is configured to meet the changing network requirements with a healthy combination of 12 multigigabit 10GbE and 36 2.5GbE ports, which will enable it to support the newest wireless and wired devices at the highest possible speed. Its PoE++s capability of 90W per port makes deployment of high-power devices like advanced access points, digital signage and IP surveillance systems, all on one switch, a seamless affair.
The EX4400-48MP has two 100GbE uplink/stacking interfaces and modular expansion options to provide flexible scale with operational ease via Virtual Chassis technology. Businesses gain access to secure connectivity through MACsec AES-256 encryption, and EVPN-VXLAN integration makes it easy to integrate with their existing campus and data center infrastructure.
Combined with Juniper Mist cloud management, IT teams can have a powerful AI-guided visibility and automation of wired networks. The combination of Marvis Virtual Assistant additionally increases the troubleshooting and decision-making process, making the operations less complicated and less time-consuming.
