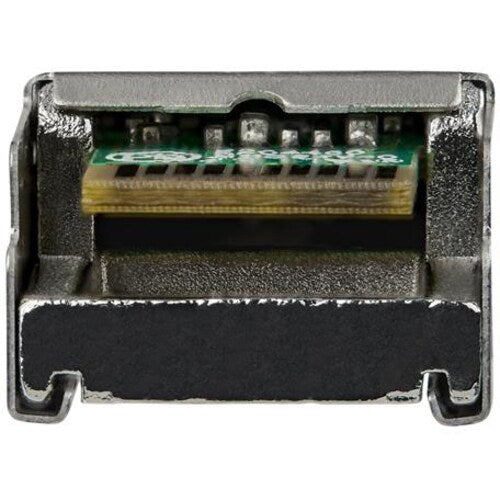

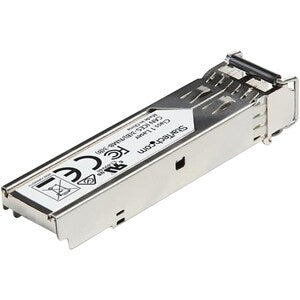

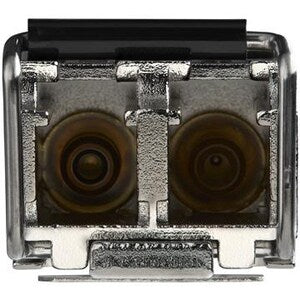

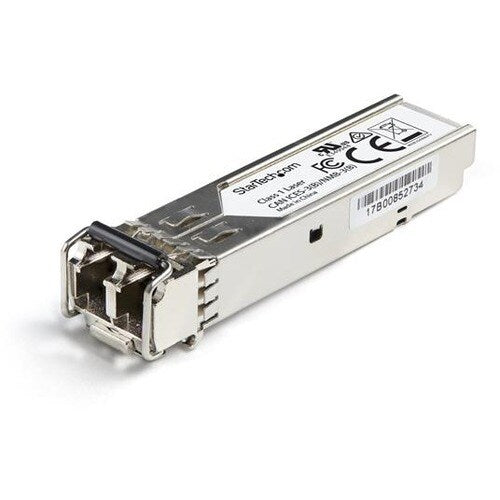

The RX550MSFPST is a Juniper RX-70KM-SFP compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-SX compliant networks, with a maximum distance of up to 70 km (43.5 mi).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 53,972,659 hours
- Power Consumption: Low power consumption
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
More from the Manufacturer
Key Features
- 100% JUNIPER RX-550M-SFP COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX
- 1Gbps
- Multi Mode (MMF)
- LC Connector
- 850nm
Dimensions
| Height | 1.3 inches |
|---|---|
| Width | 3.5 inches |
| Length | 4.4 inches |
| Weight | 0.1 pounds |
| Product Type | SFP (mini-GBIC) |
| Form Factor | Hot-swappable |
| Network Technology | 1000Base-SX |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 1 |
| Product Type | SFP (mini-GBIC) |
| Manufacturer Part Number | RX550MSFPST |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Juniper SFP (mini-GBIC) Module |
| Brand Name | StarTech.com |
| Interfaces/Ports Details | 1 x LC 1000Base-SX Network |
| Total Number of Ports | 1 |
| Network Technology | 1000Base-SX |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Compatibility | MSA Compliant |
| Country of Origin | China |
