Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer.

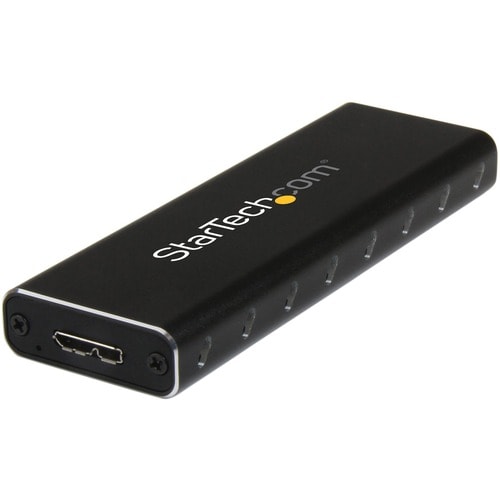

This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter.

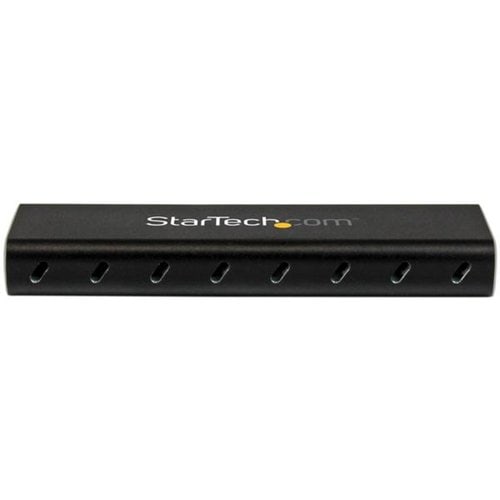

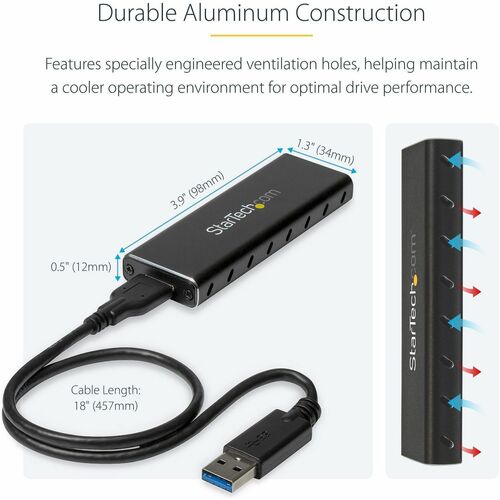

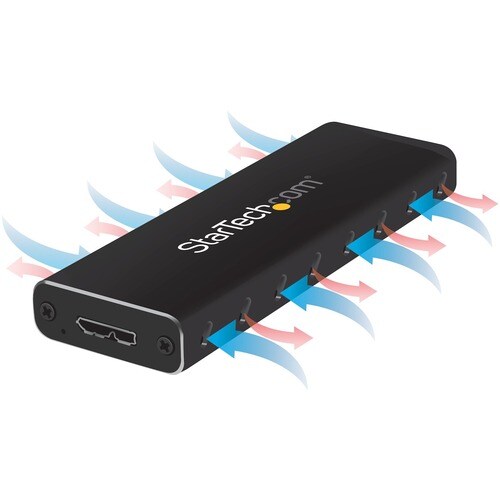

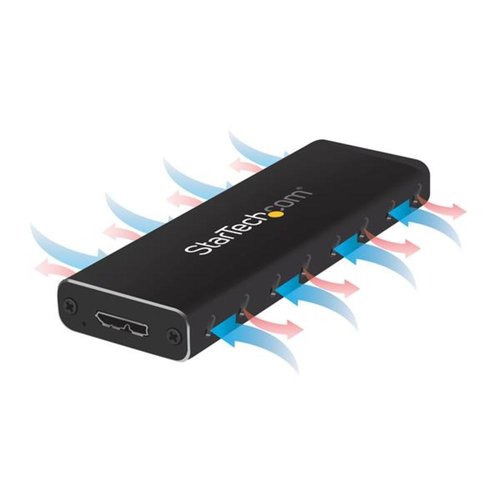

Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive.

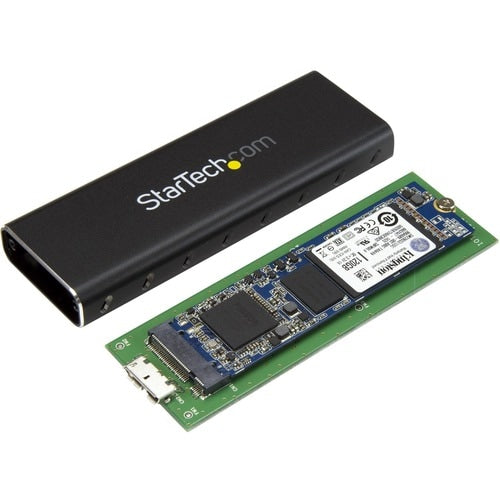

For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280.
The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASPUASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
More from the Manufacturer
More from the Manufacturer
Key Features
- NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. Please confirm you have a SATA M.2 drive before purchasing by referring to your M.2 drive specifications, or contact the drive manufacturer to confirm
- BROAD COMPATIBILITY: The enclosure supports most common SATA M.2 SSDs including 30mm, 42mm, 60mm and 80mm and is also compatible with SATA revisions I/II/III (1.5 / 3.0 / 6.0 Gbps).
- INCREASED PERFORMANCE: Boost external performance with this M.2 SDD enclosure by turning your SATA M.2 solid state drive into a high speed USB 3.0 thumb drive; The enclosure also supports UASP
- PORTABLE & NO DRIVER INSTALLATION: This black lightweight M.2 SATA SSD enclosure offers perfect portability; It supports any operating system with no additional software or drivers required
- BUILT TO LAST: This portable hard drive enclosure protects your drive from damage; The M.2 NGFF features specially engineered ventilation holes which help maintain a cooler operating environment
Dimensions
| Height | 1.2 inches |
|---|---|
| Width | 5.1 inches |
| Length | 6.3 inches |
| Weight | 0.25 pounds |

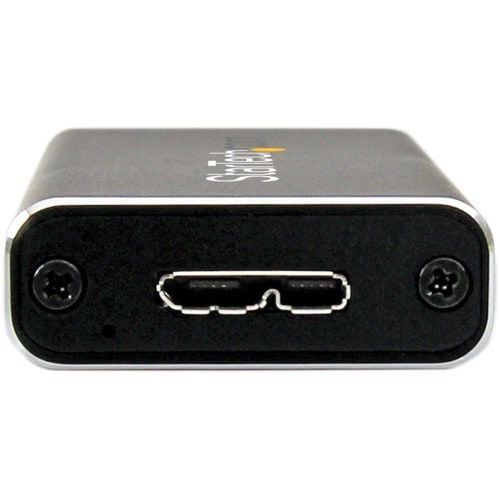

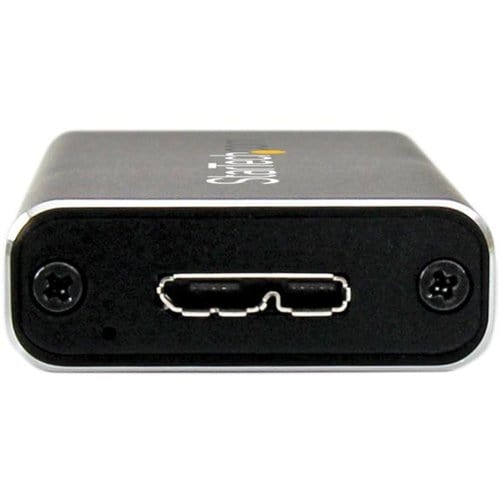

| Host Interface | USB 3.0 Micro-B |
| Product Type | Drive Enclosure |
| Form Factor | External |
| Brand Name | StarTech.com |
| Wireless LAN | No |
| Number of Total Expansion Bays | 1 |
| Drive Interface | SATA/600 |
| Drive Interface | M.2 |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | SM2NGFFMBU33 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | USB 3.0 to M.2 SATA External SSD Enclosure with UASP |
| Brand Name | StarTech.com |
| Number of Total Expansion Bays | 1 |
| Host Interface | USB 3.0 Micro-B |
| Drive Interface | M.2 |
| Drive Interface | SATA/600 |

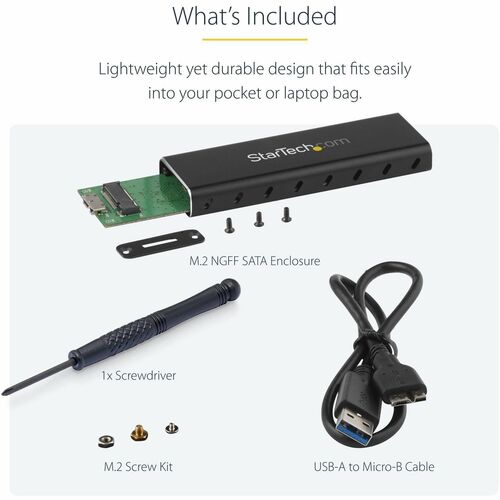

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Wireless LAN | No |
| UASP Support | Yes |
| Weight (Approximate) | 1.76 oz |
| Form Factor | External |
| Height | 0.6" |
| Width | 1.4" |
| Depth | 3.9" |
| Product Color | Black |
| Color Family | Black |
| Limited Warranty | 2 Year |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | No |
