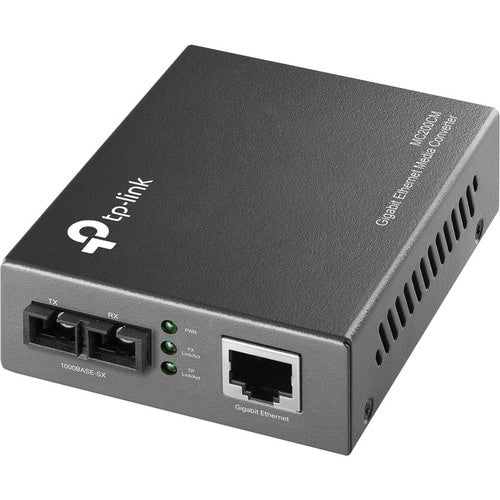

The MC200CM is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. It works at 850nm on both transmitting and receiving data.
Key Features
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
- Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber.
- Easy-to-view LED indicators provide status to monitor network activity easily.
- External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.
Dimensions
| Height | 2.4 inches |
|---|---|
| Width | 6.6 inches |
| Length | 8.2 inches |
| Weight | 1.05 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Power Source | Power Adapter |
| Form Factor | External |
| Network Technology | 1000Base-FX |
| Network Technology | 1000Base-T |
| Brand Name | TP-Link |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MC200CM |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | MC200CM |
| Product Name | MC200CM Gigabit Ethernet Media Converter |
| Brand Name | TP-Link |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Additional Information |
|
| Package Contents |
|
| Environmentally Friendly | Yes |
| Network Technology | 1000Base-FX |
| Network Technology | 1000Base-T |
| Height | 1.1" |
| Width | 3.7" |
| Depth | 2.9" |
