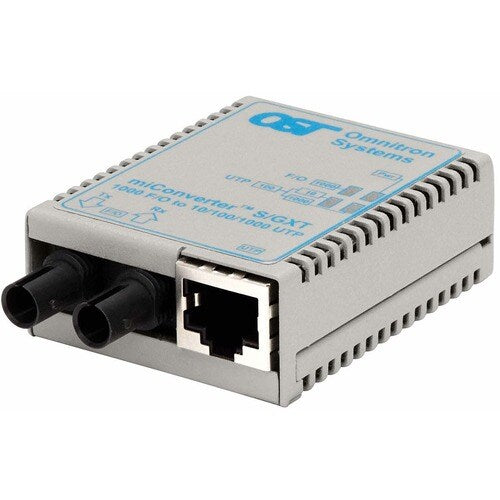

The miConverter S/GXT is an ultra-compact, lightweight Gigabit fiber-to-copper media converter designed for mobile and field applications where power efficiency and portability are paramount. This converter bridges the gap between Gigabit fiber optic networks and 10/100/1000BASE-T copper Ethernet networks, supporting connections over multimode fiber (MMF) via ST connectors.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 4.5 inches |
| Length | 8 inches |
| Weight | 0.5 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Form Factor | External |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | miConverter S/GXT |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1620-0-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1620-0-x |
| Product Name | miConverter S/GXT ST Multimode 550m USB/US AC Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | S/GXT |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Additional Information | Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 2.50 oz |
| Height | 0.8" |
| Width | 2.3" |
| Depth | 1.8" |
