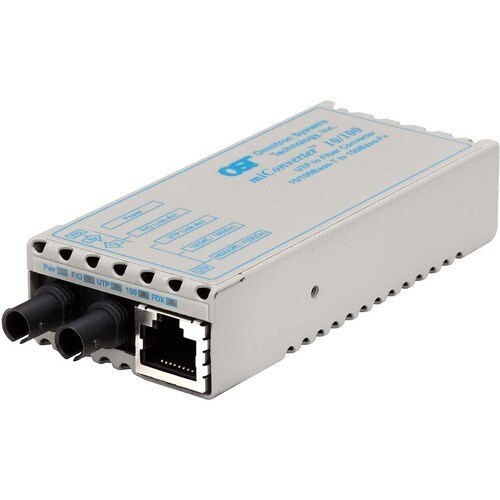

This MICONVERTER is a high-performance, cost-effective solution for extending Ethernet network reach using fiber optic cable. It seamlessly converts a 10/100BASE-TX copper Ethernet connection to a 100BASE-FX fiber optic connection, enabling data transmission over single-mode fiber up to 30 kilometers. Powered by USB for convenient deployment, this converter is ideal for extending networks in environments with electrical interference or where long-distance communication is required, such as campus backbones, industrial settings, or metropolitan area networks.
Dimensions
| Height | 1 inches |
|---|---|
| Width | 3 inches |
| Length | 5 inches |
| Weight | 0.34 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 30 km |
| Form Factor | Rack-mountable |
| Form Factor | External |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Network Technology | 100Base-LX |
| Network Technology | 10/100Base-TX |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | miConverter 10/100 |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1101-1-6 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1101-1-x |
| Product Name | miConverter 10/100 ST Single-Mode 30km USB Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | 10/100 |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 30 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Additional Information | Input Voltage:
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-LX |
| Weight (Approximate) | 5 oz |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
