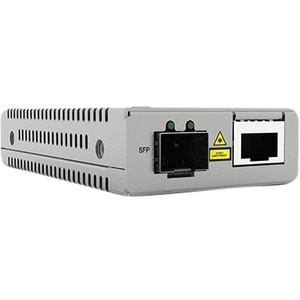

Extend NetworksThe MMC10G Series are available in 10G BASE-T to SFP+, and SFP+ to SFP+ configurations. The SFP+ connectors are capable of multi-mode or single-mode fiber connectivity. As well as 1G or 10G SFP's, the twisted- pair copper port has a 1G/10G RJ45 connector with a maximum operating distance of 100 meters (328 ft) using Cat6a/7 cabling.
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC10G Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible
The smaller size and external power supply of the MMC10G Series allows them to be used almost anywhere.
MissingLink (ML)
The MissingLink™ (ML) feature monitors network connections allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link RestorationSmart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power SavingThe MMC10G Series continues Allied Telesis commitment to the environment. Using only 4W of power, the MMC10G Series media converters are some of the most efficient in the market today.
Loopback/Traffic GeneratorThe MMC10G Series has a loopback function and Traffic Generator to help diagnose network connections.
1G/10G support
The MMC10G supports both 1Gbps and 10Gbps media conversion. The speed must match on both ports -- either 1Gbps copper to fiber, or 10Gbps copper to fiber, conversion.
Key Features
- Connect different types of media within a network with this single port
- With 10GBase-T technology get up to 10Gbps data transfer rate over supported network cable
- Rack mounting enables you to organize wires & secure cables for professional installation
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Dimensions
| Height | 2.8 inches |
|---|---|
| Width | 6.5 inches |
| Length | 9.6 inches |
| Weight | 1.2 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.10 km |
| Power Source | Power Supply |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Brand Name | Allied Telesis |
| Expansion Slot Type | SFP+ |
| Country of Origin | Singapore |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Product Family | MMC10G |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | AT-MMC10GT/SP-960 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer | Allied Telesis, Inc |
| Product Model | MMC10GT/SP |
| Product Name | MMC10GT/SP Transceiver/Media Converter |
| Product Series | MMC10G |
| Brand Name | Allied Telesis |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Maximum Distance Supported | 0.10 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Mode Supported | Multi-mode |
| Country of Origin | Singapore |
| TAA Compliant | Yes |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Weight (Approximate) | 6 oz |
| Height | 0.9" |
| Width | 2.2" |
| Depth | 4" |
