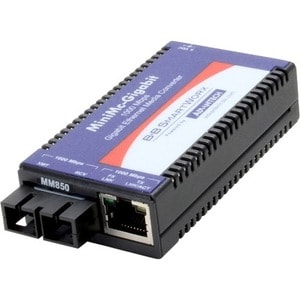

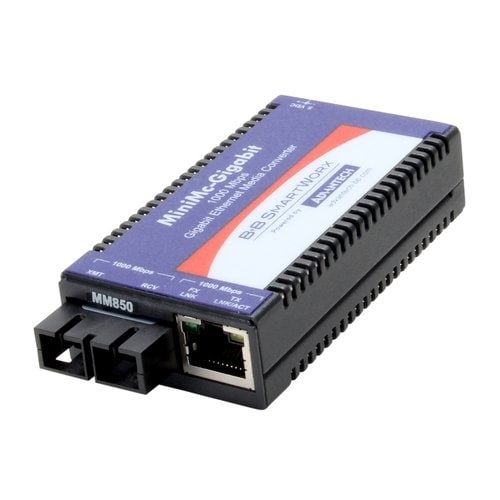

The IMC-370 series offers the most compact media converters. They can extend the 10, 100 and 1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000Mbps auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370 series serves as a media and data rate converter. The IMC-370I supports plug-n-play functionality and auto negotiation and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or be installed in a centralize-powered media converter chassis.
Key Features
- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature range (IMC-370I series)
- Provides status LED
- Supports multiple power options: AC or DC adapter and dual USB cable
- Supports Link Fault Pass Through (LFPT) (IMC-370I-SFP)
- Centralized powered IMC-318I chassis
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 5.5 inches |
| Length | 6.6 inches |
| Weight | 0.7 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Power Source | AC/DC |
| Form Factor | Wall Mountable |
| Form Factor | Rail-mountable |
| Network Technology | 10/100/1000Base-TX |
| Brand Name | B+B SmartWorx |
| Country of Origin | Taiwan |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | IMC-370I |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | IMC-371-MM-PS |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IMC-371-MM-PS |
| Product Name | 10/100/1000Mbps Miniature Media Converter |
| Product Series | IMC-370I |
| Brand Name | B+B SmartWorx |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 10/100/1000Base-TX |
| Weight (Approximate) | 11.18 oz |
| Height | 0.8" |
| Width | 1.8" |
| Depth | 3.4" |
