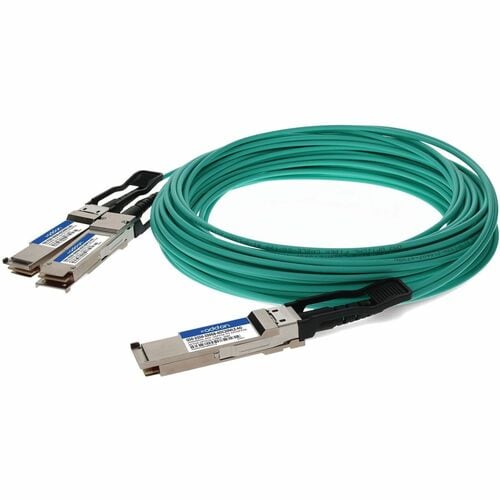

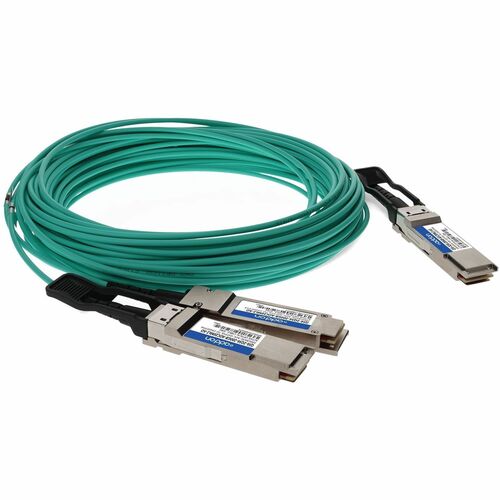

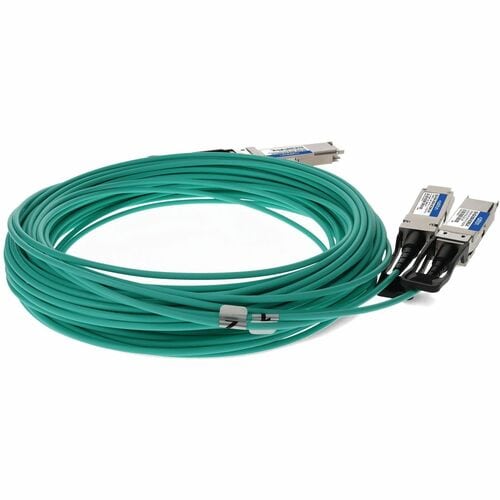

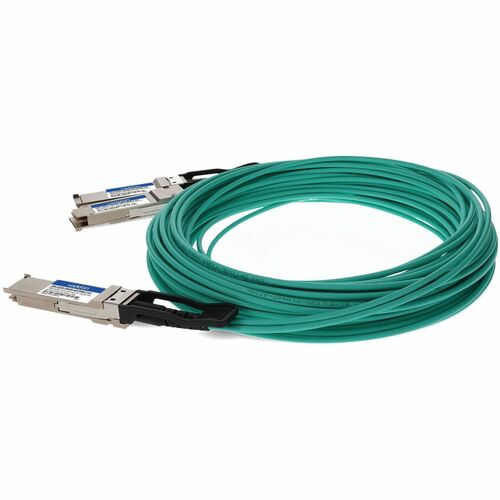

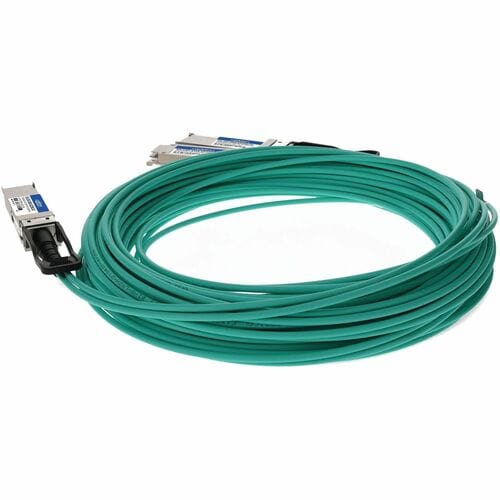

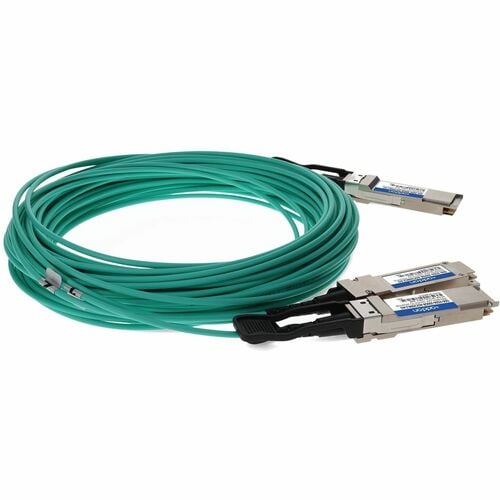

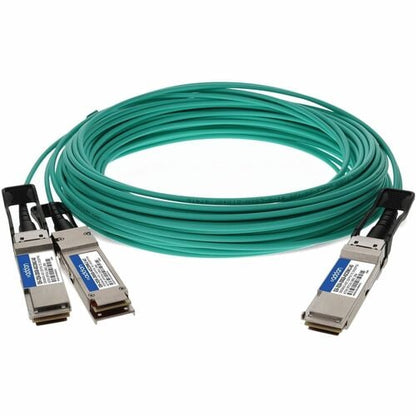

This is an MSA compliant 200GBase-AOC QSFP56 to 2xQSFP56 active optical cable that operates over multi-mode fiber with a maximum reach of 20.0m (65.6ft). At a wavelength of 850nm, it has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This active optical cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Key Features
- Low latency DSP-free electronics-based CDR
- Multi-data rate up to 56.15 Gb/s per lane
- PAM4 modulation
- Single 3.3 V power supply
- Low power consumption: 3.6W on 200G end with all CDRs enabled
- Up to 20m length
- SFF-8665 compliant
- SFF-8636 compliant I2C management interface
- Operating case temperature: 0◦C to 70◦C
- Hot pluggable
Dimensions
| Height | 3 inches |
|---|---|
| Width | 14 inches |
| Length | 14 inches |
| Weight | 1.5 pounds |
| Cable Length | 65.62 ft |
| Product Type | Network Cable |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Cable Type | Fiber Optic |
| Connector Type on First End | QSFP56 Network |
| Connector Type on Second End | QSFP56 Network |
| Fiber Optic Mode | Multi-mode |
| TAA Compliant | Yes |
| Product Color | Aqua |
| Color Family | Green |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Network Cable |
| Manufacturer Part Number | Q56-2Q56-200GB-AOC20MLZ-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | Fiber Optic Network Cable |
| Brand Name | AddOn |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Color | Aqua |
| Color Family | Green |
| Limited Warranty | Lifetime |
| Cable Length | 65.62 ft |
| Data Transfer Rate | 200 Gbit/s |
| Jacket Type | LSZH |
| Features | Lead-free |
| Features | Bendable |
| Features | AOC Technology |
| Cable Type | Fiber Optic |
| Connector Type on First End | QSFP56 Network |
| Connector Type on Second End | QSFP56 Network |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x QSFP56 Network |
| Connector on Second End Details | 2 x QSFP56 Network |
