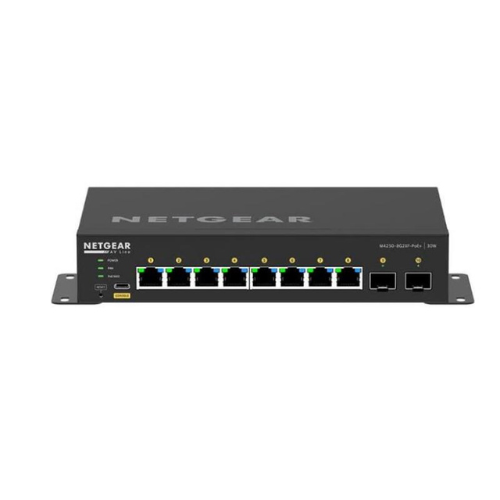

NETGEAR AV Line M4250 — GSM4210PX-100NAS

Product overview

The NETGEAR GSM4210PX-100NAS is a small sized fully controlled AV-over-IP switch designed to be used in small to mid scale pro AV systems, classrooms, huddle spaces, houses of worship, and digital signage. It also offers 8 PoE + copper port to power endpoint devices such as PTZ cameras, encoders/decoders, and Wi-Fi access points, and two 10G SFP + uplink with high bandwidth aggregation or fiber backhaul. AV profiles and multicast are preconfigured making it simpler to set up an AV profile helping you to have video and audio streaming as quickly and easily as possible.

Designed to be non-invasive and installed anywhere, this model has a low-profile desktop/rack/under-desk size, fanless or low-noise-acoustics and profile-based management such that VLANs, QoS, and IGMP can be configured easily to common AV transport standards. The optional AVB license extends the applications to time-sensitive audio networks, and power-hungry resources such as PoE+ are easily deployed, monitored, and scaled due to an otherwise straightforward front-panel interface.

Key features

• 8x 1G PoE + access ports with a large 220 W shared PoE.

• 2x 10G SFP+ uplink high speed aggregation or fiber runs.

• AV-over-IP workflow multicast Pre-tuning with IGIP improvements.

• Small passive enclosure can be mounted on cameras or indoors.

• UI Profile based quick VLAN/QoS configuration; complete L2/L3 feature set.

• AVB optional permission through electronic license.

• Jumbo of 12 KB efficient frame transporting media.
