Product overview

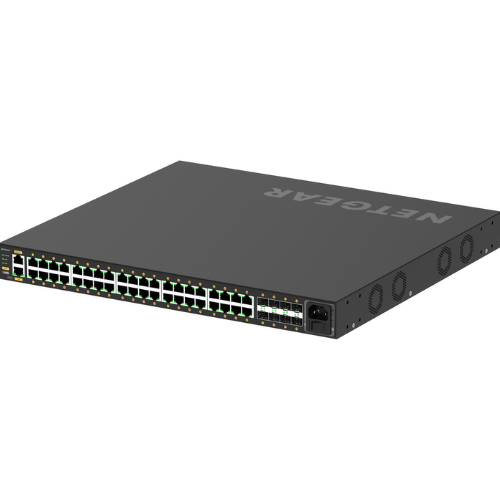

The NETGEAR GSM4248PX-100NAS is a fully-managed AV-over-IP switch designed to support medium and large-scale production areas, auditoriums, classrooms, houses of worship and corporate facilities. It has 40 Gigabit PoE+ access ports to run encoders/decoders, PTZ cameras, DSPs, control processors, and Wi-Fi access points and 8 dedicated 10G SFP + uplinks that allow flexibility and headroom in aggregation or fiber backhaul.
The M4250 platform is purpose-built to make use of profile based workflows which set up VLANs, QoS and multicast (IGMP) to popular video and audio standards, saving time on configuration and eliminating trial and error. The port layout and a small rack friendly chassis with quiet acoustics is easily installable and serviceable in tech booths and equipment racks.
Key features
-
PoE+ 1G access ports 40 x encoder, decoder, camera, and AP.
-
SFP+ uplinks at 8 x 10G and 10G fiber runs.
-
AV Profiles & UI that automate VLAN/QoS/IGMP to typical AV transport processes.
-
Strong multicast over an IGIP Snooping/Querier and rapid convergence when the number of channels is large.
-
Large PoE+ budget that can support multi-camera and multi-encoder applications.
-
Silent, rack-friendly design featuring front-mounted ports and cable management.
-
Layer 2/Layer 3 operated: VLANs, ACLs, QoS, dynamic/static routing, automation-prepared CLI/API.
-
AVB optional enablement through license (time sensitive audio networks).
Technical specifications
|
Category |
Details |
|
Model |
GSM4248PX-100NAS |
|
Series |
NETGEAR AV Line M4250 |
|
Access ports |
40 × 10/100/1000BASE-T PoE+ (802.3at) |
|
Uplink ports |
8 × 10G SFP+ |
|
PoE budget |
High shared PoE+ budget (sized for multi-device AV rigs; exact watts vary by PSU variant) |
|
Switching capacity |
Non-blocking, wire-speed on all ports |
|
Multicast |
IGMP Snooping/Querier, fast-leave, multicast optimization for AV-over-IP |
|
QoS |
Hardware queues with DSCP/CoS prioritization and traffic shaping |
|
Layer features |
L2/L3 managed: VLANs, static routes, dynamic routing (model/software dependent) |
|
AV workflows |
Profile-based presets for common video/audio transport standards |
|
Management |
Web UI (AV mode & standard mode), CLI/SSH, SNMP; automation-friendly |
|
Acoustics |
Quiet/low-noise operation suitable for in-room racks (temperature/load dependent) |
|
Form factor |
1RU rack-mount, front-facing ports; reversible rack ears/cable guides |
|
Power |
Internal AC PSU; optional redundant power features vary by model bundle |
|
Cooling |
Intelligent fan control; front-to-back airflow (model dependent) |
|
Security |
802.1X, ACLs, port security, management ACLs |
|
Jumbo frames |
Up to ~12 KB (typical for M4250 series) |
|
Typical use cases |
Pro AV over IP, education and worship venues, corporate meeting spaces, digital signage, live production networks |
