Product Overview

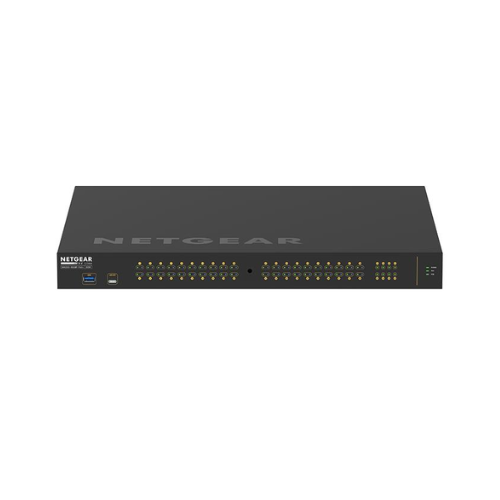

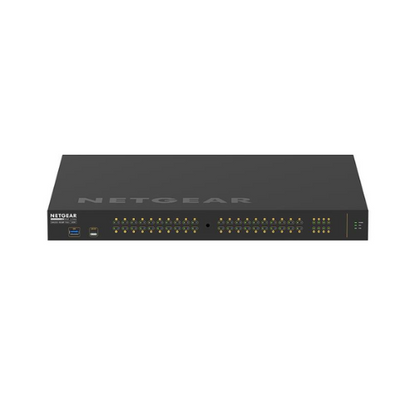

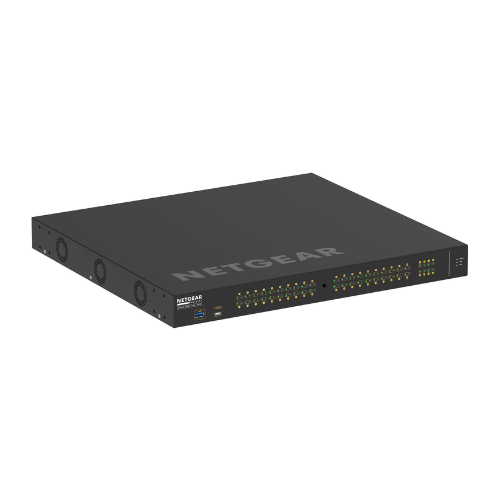

The Netgear GSM4248P-100NAS is a high-performance and fully controlled AV-over-IP switch that can meet the professional audio and video installation requirements. This 48-port switch, which is part of the M4250 series, has 40 Gigabit Ethernet PoE+ ports and 8 Gigabit SFP uplink ports, and is a strong solution to powering and connecting AV devices in the enterprise. Having a 480W PoE budget, it is dependable in delivering power to devices that are connected to it, and also has a fanless design that makes it operate silently, making it suitable in a noise-sensitive environment.
Key Features and Benefits
-
High Port Density: It has 40 Gigabit Ethernet PoE+ ports and 8 Gigabit SFP uplink ports that provide a wide range of connectivity to AV devices.
-
Power over Ethernet (PoE+) Support: Supports up to 30W per port with a cumulative PoE budget of 480W, which makes it easier to manage the power consumption of connected equipment.
-
Fanless Design: It is quiet and therefore will cause minimal noise disturbance in delicate settings like the studios and control rooms.
-
Enhanced Multicast Support: NETGEAR IGMP Plus™ support, which is effective in handling multicast traffic to limit network congestion.
-
Advanced Layer 3 Features: Layer 3 supports VLANs, QoS, and Static routing in order to optimize network performance and reliability.
-
Flexible Mounting: Rack-mountable design with reversible brackets provides flexible installation to fit in any installation configuration.
Technical Specifications
|
Feature |
Specification |
|
Ports |
40 x Gigabit Ethernet PoE+ (RJ45) |
|
8 x Gigabit SFP Uplink Ports |
|
|
PoE Budget |
480W (30W per port) |
|
Switching Capacity |
96 Gbps |
|
Forwarding Rate |
71.42 Mpps |
|
Layer 3 Features |
Static Routing, VLANs, QoS |
|
Multicast Support |
NETGEAR IGMP Plus™ |
|
Fan Type |
Fanless |
|
Mounting |
Rack-mountable with reversible brackets |
|
Dimensions (H x W x D) |
1.75 x 17.3 x 16.5 in (4.45 x 44 x 42 cm) |
|
Weight |
12.90 lbs (5.85 kg) |
Product Information
Netgear GSM4248P-100NAS is a professional AV-over-IP engineered gadget, which is a high-density switch solution with PoE+ capability to use PoE to power devices connected to the network cables directly. Its fanless nature makes it operate without noise, such that it can be used in places where noise is an issue. The high-end Layer 3 features of the switch, such as static routing and VLAN support, give flexibility and control of the network traffic. It also supports multicast stream management with the NETGEAR IGMP Plus ™ multicast, which is efficient in the delivery of AV content over the network. The 8 Gigabit SFP uplink ports make it possible to provide a growable connection to other network segments or equipment
