Product overview

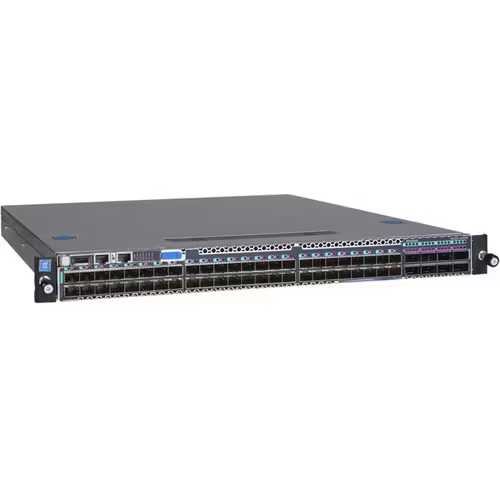

The NETGEAR XSM4556-100NAS is an M4500 series high-performance and fully managed switch with AV-over-IP and data load requirements. It supports a non-blocking throughput, ultra-low latency, and headroom required to support uncompressed 4K/8K media, high-density Wi-Fi backhaul, and the current data workflows with forty-eight 10G SFP+ endpoint ports and eight 100G QSFP28 uplink.
It is designed with rock-solid reliability, has hot-swervable power supplies and fans, profile-driven management with advanced multicast tuned to AV transports and many more. Building a spine-leaf fabric in a manufacturing plant or a consolidation of high-bandwidth servers and storage, the M4500 platform can be predictable in terms of its performance, and it is highly controlled enterprise-class.
Key features
-
Total ports: 48 1G/10G each endpoint in SFP+, 8 100G each spine/aggregation in QSFP28.
-
Very low-latency: non-blocking architecture of real-time AV and data.
-
AV-over-IP prepared: improved IGMP tooling and multicast configuration of typical AV workflows.
-
Flexible uplinks: QSFP28 ports will allow breakout to 4x25G in leaf fan-outs.
-
Managed and configured with VLAN, QoS, ACL, routing, and automation friendly CLI/API.
-
Also redundant: hot-swap PSUs and fans to keep it running.
-
Low noise: efficient 1RU design can be installed in racks within production areas.
Technical specifications
|
Category |
Details |
|
Model |
XSM4556-100NAS |
|
Series |
NETGEAR M4500 |
|
Switching ports |
48 × SFP+ (1G/10G) |
|
Uplink ports |
8 × QSFP28 100G (breakout capable to 4×25G per port) |
|
Architecture |
Non-blocking, low-latency fabric; wire-speed on all ports |
|
Layer features |
L2/L3 managed: VLANs, QoS, ACLs, static/dynamic routing |
|
Multicast |
IGMP snooping/querier, multicast optimization for AV workflows |
|
QoS |
Hardware QoS with per-port queues, prioritization, and shaping |
|
Management |
Web UI, CLI, SSH, SNMP; automation-friendly profiles |
|
Resiliency |
Dual hot-swappable PSUs, hot-swappable fan trays |
|
Form factor |
1RU rack-mount |
|
Cooling |
Front-to-back airflow (model dependent); field-replaceable fans |
|
Power |
Auto-ranging AC; redundant PSU support |
|
Typical use cases |
AV-over-IP (4K/8K), spine-leaf fabrics, high-density Wi-Fi, servers/storage aggregation |
