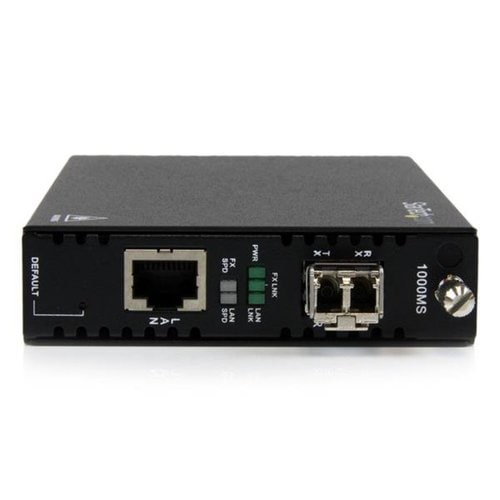

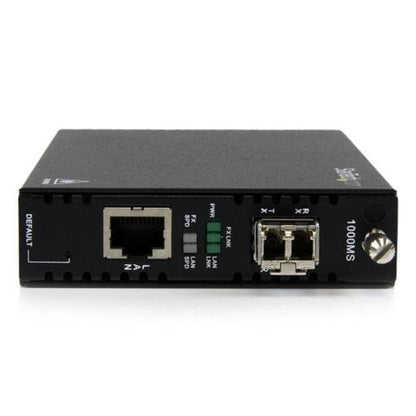

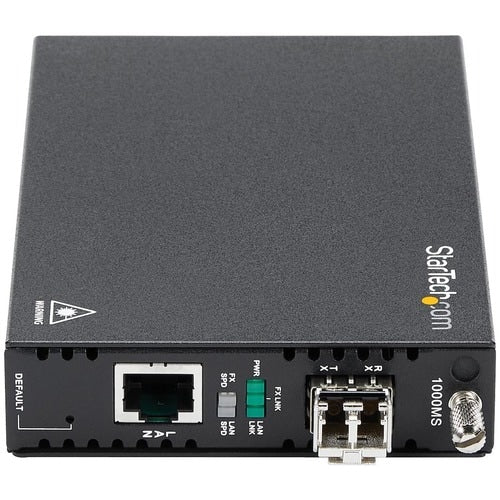

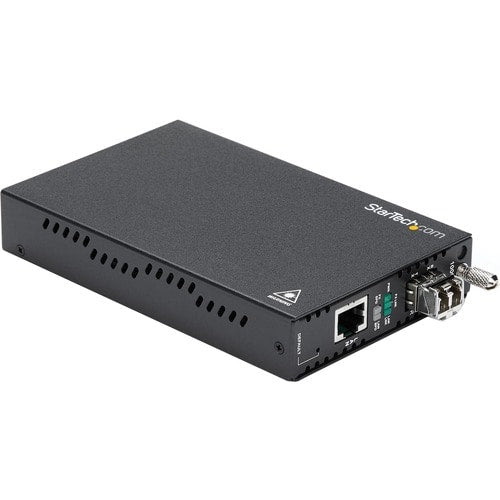

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

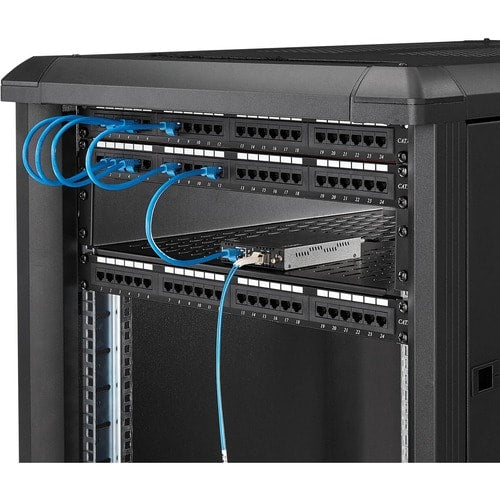

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Key Features
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- No hassle of internal installation, install externally
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Dimensions
| Height | 7.25 inches |
|---|---|
| Width | 2.8 inches |
| Length | 9 inches |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |

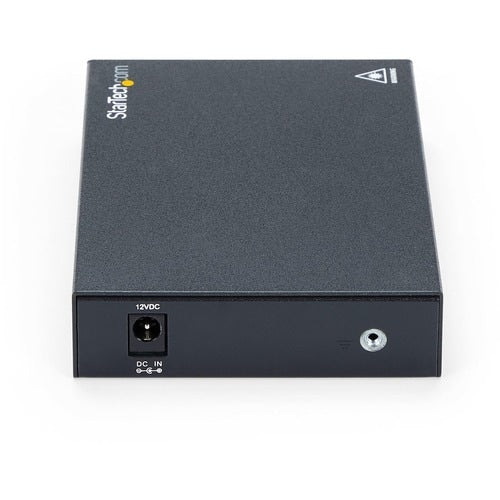

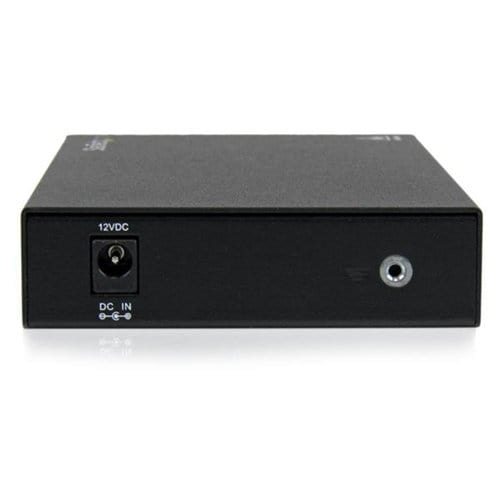

| Power Source | AC Adapter |
| Form Factor | External |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-LX/SX |
| Brand Name | StarTech.com |
| Country of Origin | Taiwan |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| TAA Compliant | Yes |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | ET91000LCOAM |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | OAM Managed Gigabit Ethernet Fiber Media Converter |
| Brand Name | StarTech.com |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of LC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |

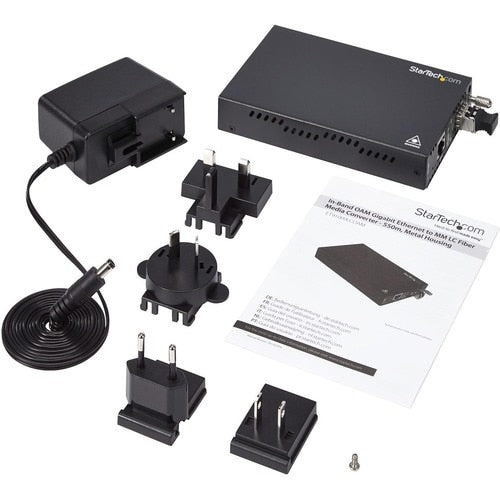

| Package Contents |
|
| Compatibility | StarTech 2U Rackmount Chassis (ETCHS2U) |
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Network Technology | 1000Base-LX/SX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 14.50 oz |
| Height | 0.9" |
| Width | 3.4" |
| Depth | 6.4" |
| Product Color | Black |
| Color Family | Black |
| Plug/Connector Type | Type M |
