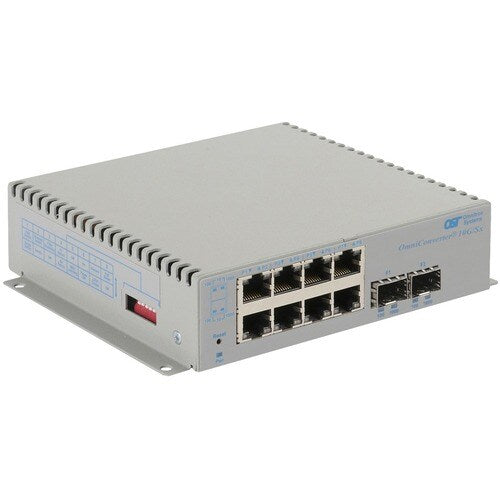

The OmniConverter 10G/Sx is a robust and versatile unmanaged compact Ethernet switch designed to extend network reach over fiber optic cabling. It features two uplink ports supporting 1Gbps or 10Gbps SFP+ transceivers and eight 10/100/1000Mbps RJ-45 copper user ports. This Layer 2 switch efficiently forwards traffic based on MAC addresses and offers advanced features to optimize network performance and reliability for critical applications.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 5.2 inches |
| Length | 6.28 inches |
| Weight | 2 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2901-0-28-9W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2901-0-28-9W |
| Product Name | OmniConverter 10G/Sx, 2xSFP/SFP+, 8xRJ-45, 1xDC Powered Wide Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | 10G/Sx |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 2.0 |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 10 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-BX-D |
| Network Technology | 1000Base-BX-U |
| Network Technology | 1000Base-BX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-SX/LX |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-LX10 |
| Network Technology | 1000Base-LX/SX |
| Network Technology | 1000Base-LX/LH |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-BX10-U |
| Network Technology | 1000Base-BX10-D |
| Network Technology | 10GBase-ZR |
| Network Technology | 10GBase-SR |
| Network Technology | 10GBase-LRM |
| Network Technology | 1000Base-ZX |
| Network Technology | 10GBase-ER |
| Network Technology | 10GBase-LR |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Additional Information | Operating Temperature Range: -40 to +60 deg C" |
| Package Contents |
|
| Certifications & Standards |
EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.60 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
| Plug/Connector Type | Terminal Block (2 Wire) |
