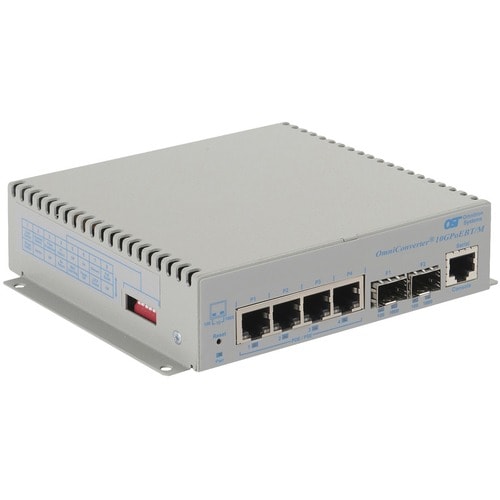

The OmniConverter 10GPoEBT/M is a high-performance, managed industrial Ethernet switch designed for demanding network applications requiring robust connectivity, advanced PoE capabilities, and high availability. It offers a versatile combination of high-speed uplink ports and multi-gigabit PoE-enabled user ports, making it ideal for powering and connecting a wide range of industrial devices.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 5.2 inches |
| Length | 6.28 inches |
| Weight | 4 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 3162B-0-24-1W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 3162B-0-24-1W |
| Product Name | OmniConverter 10GPoEBT/M 3162B-0-24-1W Ethernet Switch |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | 10GPoEBT/M |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP+ |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Total Number of Expansion Slots | 2.0 |
| Modular | Yes |
| Management Port | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 6 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Hi-PoE |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Manageable | Yes |
| Network Technology | 1000Base-LX/SX |
| Network Technology | 1000Base-LX/LH |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-BX10-U |
| Network Technology | 1000Base-BX10-D |
| Network Technology | 1000Base-BX-U |
| Network Technology | 1000Base-BX-D |
| Network Technology | 1000Base-BX |
| Network Technology | 10GBase-LR |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-ER |
| Network Technology | 1000Base-ZX |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-SX/LX |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-LX10 |
| Network Technology | 10GBase-ZR |
| Network Technology | 10GBase-SR |
| Network Technology | 10GBase-LRM |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Additional Information | Number of Management Port: 1 Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.50 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
| Plug/Connector Type | Barrel |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 100 W |
