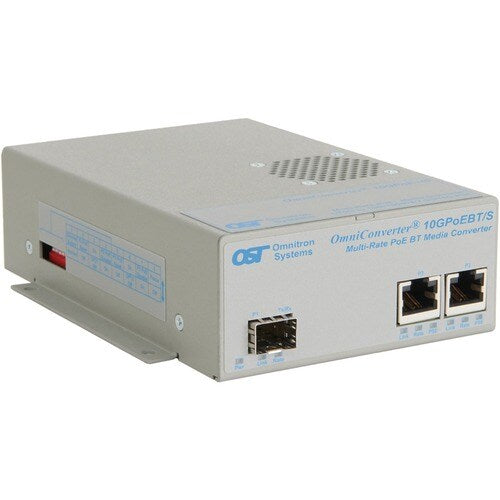

The OmniConverter 10GPoE+/S and 10GPoEBT/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-rate/multigig RJ-45 Power-over-Ethernet user ports. They support PoE, PoE+ and PoE++ up to 100 watts depending on the model.
The RJ-45 user ports support multi-rate/multigig speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The 10GPoE+/S supports IEEE 802.3at (15 and 30W) and the 10GPoEBT/S supports IEEE 802.3bt (60 and 100W) per user port depending on the model.
The OmniConverter PoE media converters support frame sizes up to 10,240 bytes.
The media converters feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5BASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or singlemode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.
The OmniConverter PoE media converters are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today.
OmniConverter 10G media converters provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.
Configurable features include a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter.
The PoE media converters automatically negotiate and deliver the power level required by a Powered Device (PD) partner. Depending on the OmniConverter PoE model, the media converter can deliver up to 100 watts of power per port.
The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit (8250-0). They can also be mounted on a 1U 19" rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.
Key Features
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The unit is standalone and you can place it anywhere on a flat surface
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Dimensions
| Height | 1.75 inches |
|---|---|
| Width | 4.8 inches |
| Length | 6 inches |
| Weight | 4 pounds |
| Product Type | Transceiver/Media Converter |
| Power Source | AC/DC |
| Form Factor | Shelf Mount |
| Form Factor | Standalone |
| Form Factor | Tabletop |
| Form Factor | Rack-mountable |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-X |
| Network Technology | 2.5GBase-T |
| Network Technology | 5GBase-T |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP+ |
| Country of Origin | United States |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Product Family | OmniConverter 10GPoEBT/S |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| Total Number of Expansion Slots | 1 |
| PoE Port Type | PSE |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 9192B-0-12-1W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 9192-0-12-1W |
| Product Name | OmniConverter 10GPoEBT/S 9192-0-12-1W Transceiver/Media Converter |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | 10GPoEBT/S |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 2 |
| Number of 60W PoE (RJ-45) Ports | 2 |
| PoE Port Type | PSE |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Additional Information | Operating Temperature Range:
|
| Package Contents |
|
| Certifications & Standards | IEEE 802.3, 802.3bz |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-X |
| Network Technology | 2.5GBase-T |
| Network Technology | 5GBase-T |
| Weight (Approximate) | 1.10 lb |
| Height | 1.8" |
| Width | 4.8" |
| Depth | 6" |
