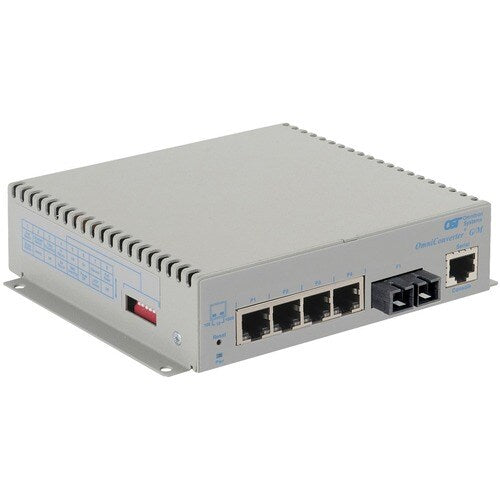

The OmniConverter G/M is a versatile, compact, managed Gigabit Ethernet fiber edge switch designed for extending network distances and providing robust connectivity. This specific model features one Gigabit multimode fiber port (SC connector, 550m reach) and four 10/100/1000Base-T RJ-45 copper ports. It operates as a Layer 2 Ethernet switch, forwarding frames based on MAC addresses. The G/M offers advanced features such as Directed Switch mode for efficient multicast traffic management, and models with dual fiber ports support redundant uplinks for high availability with sub-50ms restoration and Daisy-Chaining capabilities. Dual Device mode allows for operation as two independent switches. Configuration and management are flexible, accessible via DIP-switches, or through Web, Telnet, SSH, and Serial Console interfaces (supporting both in-band and out-of-band management). The G/M integrates with Omnitron's NetOutlook SNMP software for comprehensive monitoring and alarming. It can be wall or DIN-rail mounted and is powered by a US AC to DC adapter.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.6 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2822-0-14-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2822-0-14-1 |
| Product Name | OmniConverter G/M, 1xMM SC + 4xRJ-45, AC Powered Commercial Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/M |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 4 |
| Management Port | Yes |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 6 |
| SC Port Type | Duplex |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Manageable | Yes |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-T |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Additional Information | Number of Serial Ports: 1 Fiber Optic Wavelength: 850nm Maximum Distance Supported: 220 / 550m Management: |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
