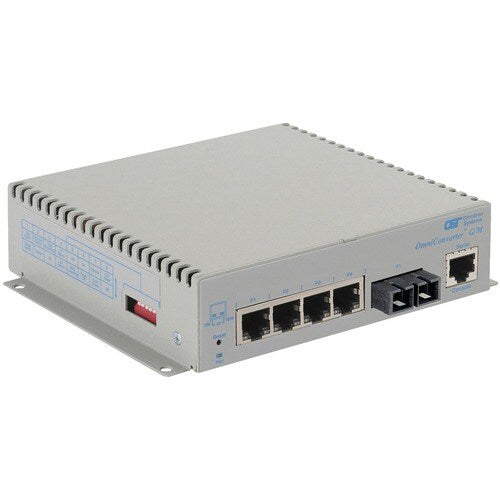

The OmniConverter G/M is a versatile, managed Gigabit Ethernet fiber edge switch designed to extend network reach and enhance connectivity in demanding environments. This compact unit bridges the gap between copper and fiber networks, offering robust performance and flexible management options. It excels in applications requiring reliable network extension, efficient multicast handling, and high availability through redundant fiber connections.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.1 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2823-1-14-9Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2823-1-14-9Z |
| Product Name | OmniConverter G/M, 1xSM SC + 4xRJ-45, DC Powered Extended Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/M |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 4 |
| Management Port | Yes |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 6 |
| SC Port Type | Duplex |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Manageable | Yes |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-T |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Additional Information | Number of Serial Ports: 1 Fiber Optic Wavelength: 1310nm Maximum Distance Supported: 12km Management: |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
