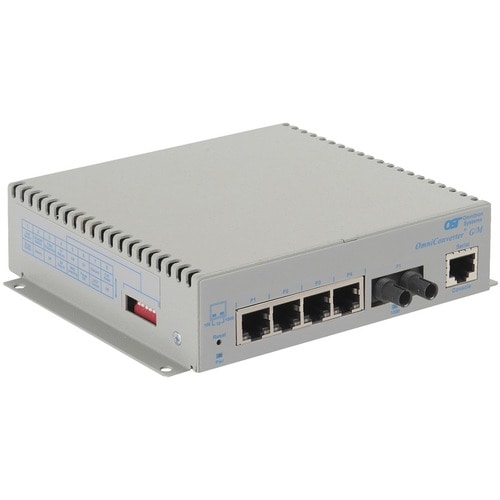

The OmniConverter G/M is a versatile and compact managed Ethernet switch designed to extend network distances using fiber optic cabling. This Layer 2 switch intelligently forwards Ethernet frames based on MAC addresses. It offers a flexible configuration of fiber and copper ports, making it suitable for various network deployments. Advanced features like Directed Switch mode optimize multicast traffic delivery, while models with dual fiber ports provide redundancy and the ability to operate as two independent switches (Dual Device mode). Management can be achieved through both in-band (Web, Telnet, SSH, SNMP) and out-of-band (Serial Console) interfaces, with support for Omnitron's NetOutlook software for monitoring and alarming.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.6 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2821-1-14-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2821-1-14-1 |
| Product Name | OmniConverter G/M, 1xSM ST + 4xRJ-45, AC Powered Commercial Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/M |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 4 |
| Management Port | Yes |
| Number of ST Ports | 1 |
| Total Number of Network Ports | 6 |
| ST Port Type | Duplex |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Manageable | Yes |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-T |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Additional Information | Number of Serial Ports: 1 Fiber Optic Wavelength: 1310nm Maximum Distance Supported: 12 Km |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
