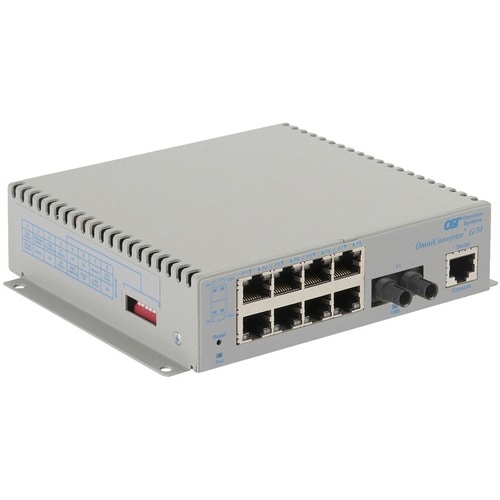

The OmniConverter G/M is a versatile and compact managed Gigabit Ethernet fiber edge switch designed for extending network reach and enhancing connectivity. This model features eight 10/100/1000Base-T RJ-45 copper ports and a Gigabit fiber uplink port with an ST connector, supporting single-mode fiber for distances up to 12km. It operates as a Layer 2 managed switch, intelligently forwarding frames based on MAC addresses. Advanced features include Directed Switch mode for efficient multicast traffic management (ideal for video distribution), and support for redundant fiber uplinks and Dual Device mode on models with two fiber ports for critical applications and network segmentation. Configuration is flexible, accessible via DIP-switches or comprehensive management interfaces including Web, Telnet, SSH, and Serial Console, supporting both in-band and out-of-band management. Omnitron's NetOutlook SNMP software provides real-time monitoring and alarm reporting. The unit is powered by a US AC adapter and offers multiple mounting options, including wall and DIN-rail.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 2.2 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2821-1-18-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2821-1-18-1 |
| Product Name | OmniConverter G/M, 1xSM ST + 8xRJ-45, AC Powered Commercial Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/M |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 8 |
| Management Port | Yes |
| Number of ST Ports | 1 |
| Total Number of Network Ports | 10 |
| ST Port Type | Duplex |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | Yes |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-LX |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information | Number of Serial Ports: 1 Fiber Optic Wavelength: 1310nm Maximum Distance Supported: 12km Management: Web, Telnet, SSH, Serial Console, SNMPv1/v2 |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.50 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
