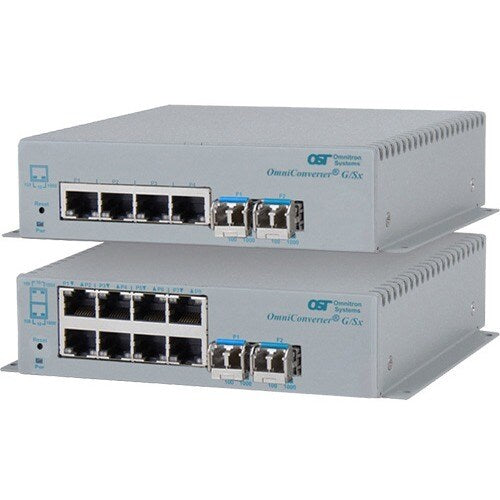

The OmniConverter G/Sx is a compact, unmanaged Layer 2 Ethernet switch designed to extend network distances using fiber optic cabling. This versatile edge switch features a combination of Gigabit fiber optic ports and 10/100/1000 Mbps RJ-45 copper ports, making it ideal for connecting various network devices and extending reach in demanding environments. Its plug-and-play design, configurable via DIP switches, simplifies deployment, while advanced features like Directed Switch mode and Dual Device mode offer enhanced traffic management and network resilience.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.1 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2862-6-14-9Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2862-6-14-9Z |
| Product Name | OmniConverter G/Sx, 1xMM SC + 4xRJ-45, DC Powered Extended Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/Sx |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 4 |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 5 |
| SC Port Type | Duplex |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-LX/LH |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Additional Information | Fiber Optic Wavelength: 1310nm Maximum Distance Supported: 2km Input Voltage: 12 to 57VDC Input Voltage: DC Terminal Power 12 to 57VDC via 2-Pin Terminal (0.85A @ 12VDC; 0.19A @ 48VDC) Operating Temperature Range: Extended: -40 to +75 deg C |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
