The OmniConverter G/Sx is a compact, unmanaged Layer 2 Gigabit Ethernet switch designed to extend network distances using fiber optic cabling. It offers a versatile combination of Gigabit fiber ports and 10/100/1000Base-T RJ-45 copper ports, making it ideal for various network edge applications. The device intelligently forwards frames based on MAC addresses and features a Directed Switch mode to optimize multicast traffic, preventing unnecessary flooding of network ports. Models with dual fiber ports provide enhanced reliability through redundant uplinks with sub-50ms restoration, or can be utilized for daisy-chaining multiple switches or as additional switch ports. Furthermore, Dual Device mode allows a single G/Sx unit to function as two independent and isolated Ethernet switches, ensuring separate data traffic paths. Configuration is simplified via easily accessible DIP-switches clearly labeled on the unit. The OmniConverter G/Sx supports a range of fiber connectors (ST, SC, LC) and SFP transceiver receptacles, accommodating multimode or single-mode fiber across various distances up to 140 km, including CWDM wavelengths for SFP models. Its compact design allows for flexible mounting options, including wall or DIN-rail mounting (with an optional clip). Power is supplied via DC input terminal connectors or external AC power adapters (100-240V).
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.5 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2863-2-18-9Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2863-2-18-9Z |

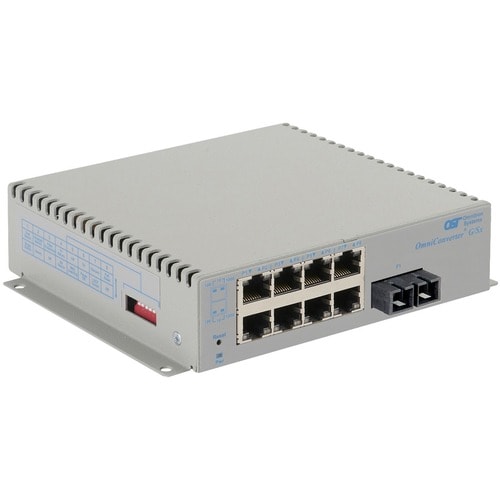

| Product Name | OmniConverter G/Sx, 1xSM SC + 8xRJ-45, DC Powered Extended Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/Sx |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 8 |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 9 |
| SC Port Type | Duplex |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-LX/LH |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information | Fiber Optic Wavelength: 1310 nm |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.50 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
