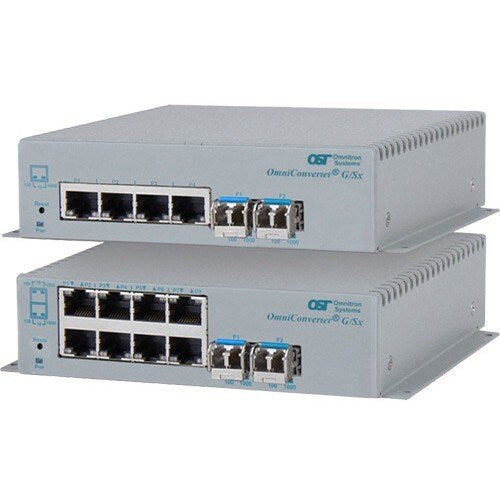

The OmniConverter G/Sx is a compact, unmanaged Gigabit Ethernet fiber edge switch designed for extending network distances using fiber optic cabling. It offers flexible connectivity with one or two Gigabit fiber ports and four or eight 10/100/1000 RJ-45 copper ports. This Layer 2 switch forwards frames based on MAC addresses and includes advanced features like Directed Switch mode for efficient multicast traffic management. Models with dual fiber ports provide redundant uplinks for high availability with sub-50ms restoration, can be used for daisy-chaining, or operate as two independent switches in Dual Device mode. Configuration is simplified via accessible DIP-switches with clear labeling. The G/Sx is available with various fixed fiber connectors (ST, SC, LC) or SFP transceiver receptacles, supporting multimode or single-mode fiber with distances up to 140 km. SFP models offer compatibility with a wide range of distances and CWDM wavelengths. Its compact design allows for wall or DIN-rail mounting, and it supports DC power input or external AC adapters.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.6 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2871-1-14-1Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2871-1-14-1Z |
| Product Name | OmniConverter G/Sx, 1xSM SC SF + 4xRJ-45, AC Powered Extended Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/Sx |
| Brand Name | Omnitron Systems |
| Number of Network (RJ-45) Ports | 4 |
| Number of SC Ports | 1 |
| Total Number of Network Ports | 5 |
| SC Port Type | Simplex |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-BX |
| Network Technology | 1000Base-T |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Additional Information | Fiber Optic Wavelength: 1310 / 1550 nm |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.10 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
