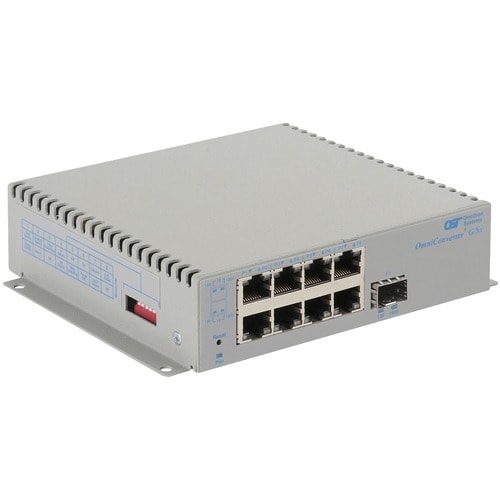

The OmniConverter G/Sx is a compact, unmanaged Gigabit Ethernet switch designed for extending network distances using fiber optic cabling. It features a combination of copper and fiber ports, offering flexibility for various network deployments. This switch operates at Layer 2, forwarding Ethernet frames based on MAC addresses. Key features include support for Directed Switch mode to optimize multicast traffic, and models with dual fiber ports offer redundancy and advanced operational modes like Daisy-Chain and Dual Device for independent traffic segregation. Configuration is simplified through accessible, clearly labeled DIP-switches. The G/Sx is available with various connector types and SFP transceiver support, accommodating a wide range of fiber optic specifications, including multimode and single-mode with extended reach capabilities up to 140 km. It is designed for versatile mounting options, including wall and DIN-rail installations, and offers flexible power input via DC terminal connectors or external AC adapters.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 2.2 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2879-0-18-1W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2879-0-18-1W |
| Product Name | OmniConverter G/Sx, 1xSFP + 8xRJ-45, AC Powered Wide Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/Sx |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
| Number of Network (RJ-45) Ports | 8 |
| Modular | Yes |
| Number of LC Ports | 1 |
| Total Number of Network Ports | 9 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-LX/LH |
| Network Technology | 1000Base-LX/SX |
| Network Technology | 1000Base-LX10 |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-SX/LX |
| Network Technology | 1000Base-ZX |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-BX |
| Network Technology | 1000Base-BX-D |
| Network Technology | 1000Base-BX-U |
| Network Technology | 1000Base-BX10-D |
| Network Technology | 1000Base-BX10-U |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Additional Information | Maximum Distance Supported: 120 Km |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.50 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
