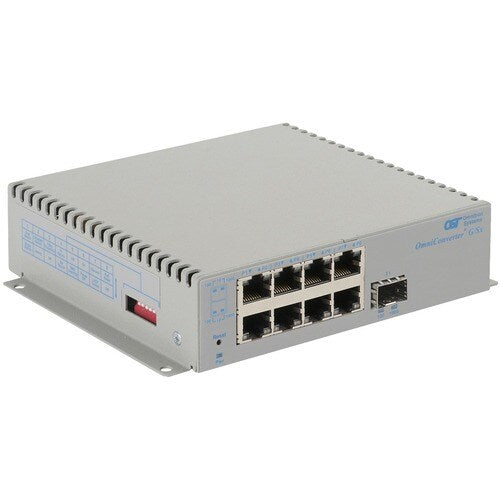

The OmniConverter G/Sx is a compact, unmanaged Layer 2 Ethernet switch designed to extend network distances using fiber optic cabling. It features a combination of Gigabit fiber optic ports and 10/100/1000 RJ-45 copper ports, providing versatile connectivity for edge network deployments. This switch intelligently forwards Ethernet frames based on MAC addresses and supports advanced features like Directed Switch mode to optimize multicast traffic flow, particularly for video streams. Models with dual fiber ports offer enhanced reliability through redundant uplinks with sub-50ms restoration capabilities and flexible deployment options including daisy-chaining or operating as two independent switches (Dual Device mode). Configuration is simplified via accessible DIP-switches with clear labeling. The G/Sx supports a variety of fiber optic connector types (ST, SC, LC) and SFP transceiver receptacles, accommodating multimode or single-mode fiber across a wide range of distances (up to 140 km), including CWDM wavelengths for SFP models. Its compact design allows for flexible mounting on walls or DIN-rails, and it can be powered via DC input or external AC adapters.
Dimensions
| Height | 1.5 inches |
|---|---|
| Width | 6.28 inches |
| Length | 5.2 inches |
| Weight | 1.5 pounds |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2879-0-18-9Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 2879-0-18-9Z |
| Product Name | OmniConverter G/Sx, 1xSFP + 8xRJ-45, DC Powered Extended Temp |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | G/Sx |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
| Number of Network (RJ-45) Ports | 8 |
| Modular | Yes |
| Number of LC Ports | 1 |
| Total Number of Network Ports | 9 |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 1000Base-ZX |
| Network Technology | 1000Base-SX/LX |
| Network Technology | 1000Base-SX |
| Network Technology | 1000Base-LX10 |
| Network Technology | 1000Base-LX/SX |
| Network Technology | 1000Base-LX/LH |
| Network Technology | 1000Base-LX |
| Network Technology | 1000Base-BX10-U |
| Network Technology | 1000Base-BX10-D |
| Network Technology | 1000Base-BX-U |
| Network Technology | 1000Base-BX-D |
| Network Technology | 1000Base-BX |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Additional Information | Maximum Distance Supported: 120 km |
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.50 lb |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
