Tripp Lite's PDUMV15 metered power distribution unit offers 15 amp, 120V multi-outlet AC power distribution in a convenient 48-inch mountable housing. Digital current meter displays the power consumption of connected equipment. Offers vertical power distribution in rackmount, raceway, and workbench applications. Includes 16 NEMA 5-15R output receptacles, 15 ft. AC line cord, and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory, or factory enviroments. Unfiltered electrical pass-through makes the PDUMV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 16 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15 amp circuit breaker in rugged metal case design.PLUG/OUTLETS-Input: NEMA 5-15P/Output: 16 NEMA 5-15RELECTRICAL - 120V AC, 50/60Hz, 15AFORMAT - 48 inch mountable strip format
More from the Manufacturer
Key Features

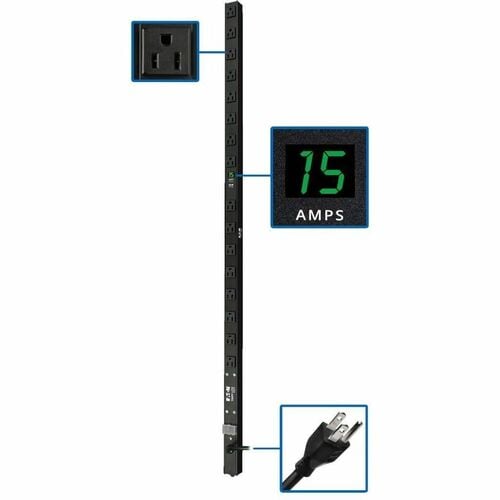

- Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU

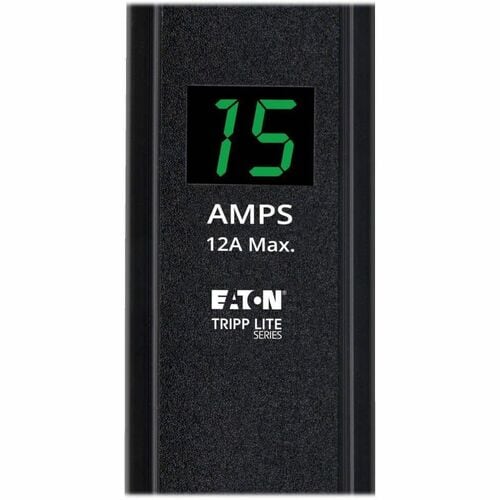

- Two-digit current meter reports output current in amps

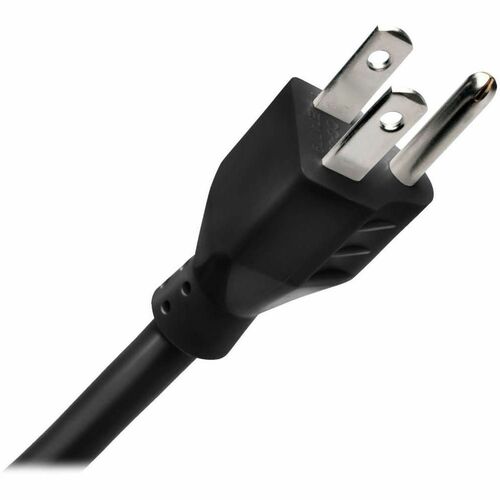

- Attached 15ft / 4.5m cord with NEMA 5-15P input plug

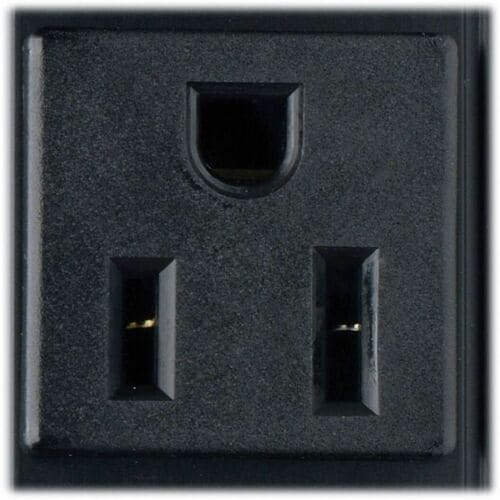

- 16 NEMA 5-15R outlets

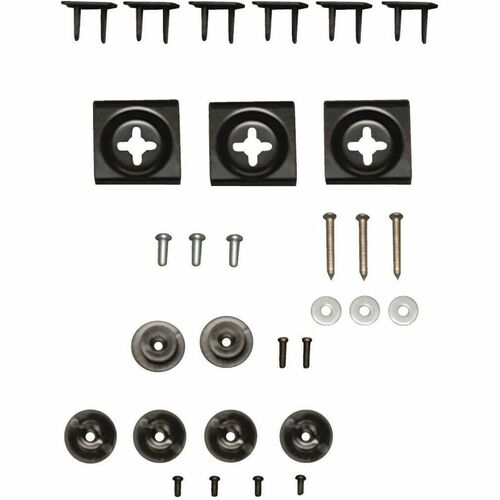

- Toolless button mount and bolt-down bracket installation hardware included
Dimensions
| Height | 2.25 inches |
|---|---|
| Width | 3.25 inches |
| Length | 51.8 inches |
| Weight | 4.2 pounds |
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Mounting Orientation | Vertical |
| Power Rating (VA) | 1800 VA |
| Receptacle Detail | 16 x NEMA 5-15R |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV15 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV15 |
| Product Name | PDUMV15 PDU Metered 120V 15A 16 Outlet |
| Brand Name | Tripp Lite series |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Weight (Approximate) | 3.80 lb |
| Height | 3" |
| Width | 48" |
| Depth | 1.5" |
| Mounting Orientation | Vertical |
| Circuit Breaker | Yes |
| Power Rating (VA) | 1800 VA |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 16 x NEMA 5-15R |
