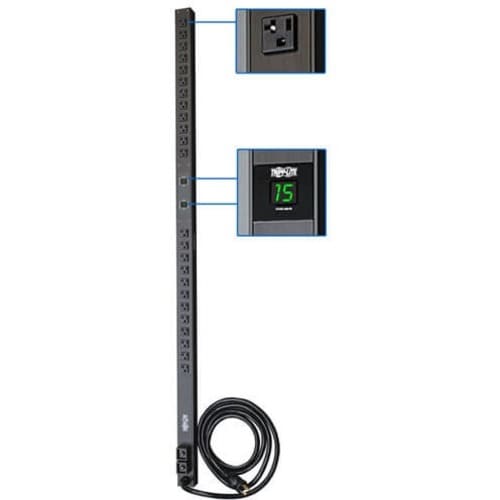

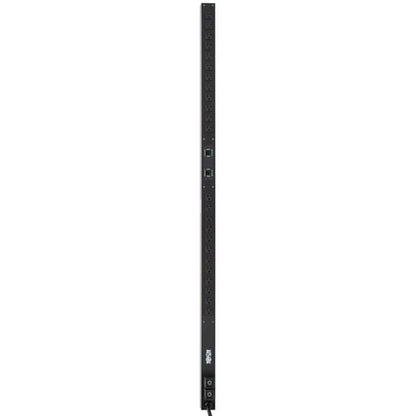

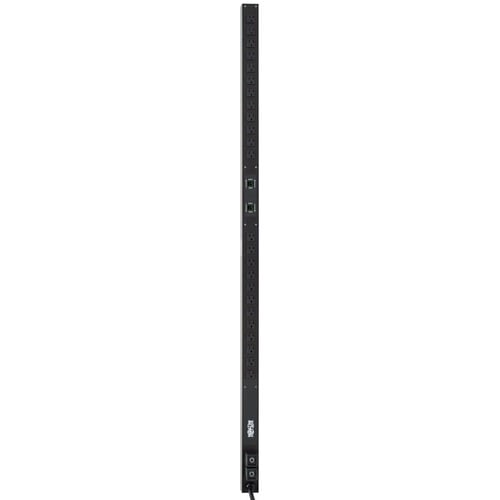

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Toolless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV30 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 120V (agency derated to 24A). Includes 10-ft. attached line cord with L5-30P input plug. 24 5-15/20R outlets support networking equipment with 5-15P or 5-20P input plugs. Outlets are arranged in two separately metered and breakered 20A load banks (each with 12 5-15/20R outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading bank
More from the Manufacturer
Key Features
- Metered single phase 30A 120V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
- Attached 10ft / 3.0m cord with NEMA L5-30P input plug
- 24 NEMA 5-15/20R outlets in two separately breakered load banks
Dimensions
| Height | 3 inches |
|---|---|
| Width | 5 inches |
| Length | 65 inches |
| Weight | 10.3 pounds |
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Mount Type | Rack-mountable |
| Mount Type | Wall-mountable |
| Protection Type | Short Circuit Protection |
| Protection Type | Overload Protection |
| Brand Name | Tripp Lite series |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Mounting Orientation | Vertical |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV30 |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV30 |
| Product Name | PDUMV30 PDU Metered 120V 30A 24 Outlet |
| Brand Name | Tripp Lite series |
| Package Contents |
|
| Country of Origin | China |
| Weight (Approximate) | 8 lb |
| Height | 63.8" |
| Width | 2.3" |
| Depth | 3.8" |
| Mounting Orientation | Vertical |
| Protection Type | Short Circuit Protection |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
