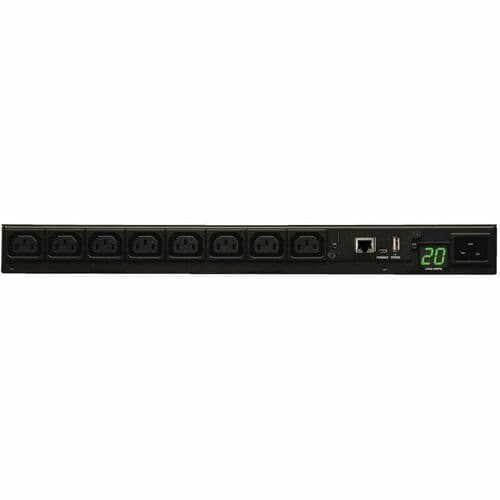

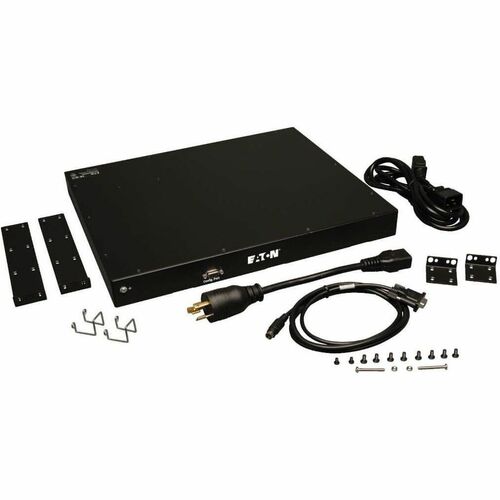

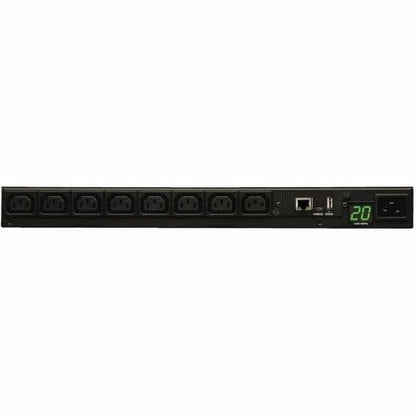

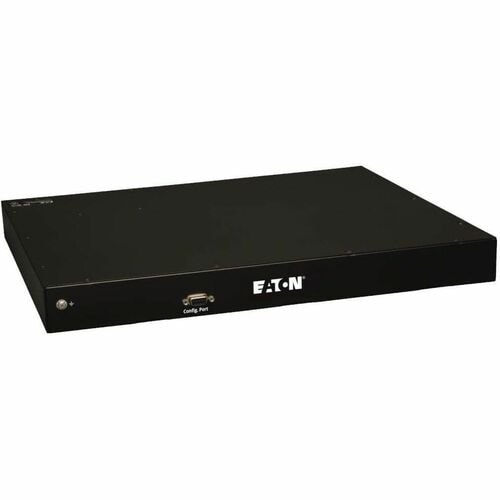

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. LX Platform interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
More from the Manufacturer
Key Features
- Monitored 16/20A 200-240V PDU, 1U horizontal rackmount
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- C20 inlet; 8.5ft / 2.6m C20 cable with L6-20P plug adapter
- TAA Compliant for GSA Schedule purchases
Dimensions
| Height | 5.3 inches |
|---|---|
| Width | 20.7 inches |
| Length | 23.2 inches |
| Weight | 14.15 pounds |
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Mount Type | Rack-mountable |
| Mount Type | Wall-mountable |
| Rack Height | 1U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA L6-20P |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Product Family | Monitored |
| TAA Compliant | Yes |
| PDU Type | Monitored |
| Mounting Orientation | Horizontal |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | PDU |
| Manufacturer Part Number | PDUMNH20HV |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMNH20HV |
| Product Name | Monitored PDUMNH20HV 8-Outlets PDU |
| Product Series | Monitored |
| Brand Name | Eaton |
| Management | Protocols:
|
| Package Contents |
|
| Certifications & Standards | TAA Compliant |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 9 lb |
| Rack Height | 1U |
| Height | 1.8" |
| Width | 17.5" |
| Depth | 14.8" |
| Mounting Orientation | Horizontal |
| Plug/Connector Type | NEMA L6-20P |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
