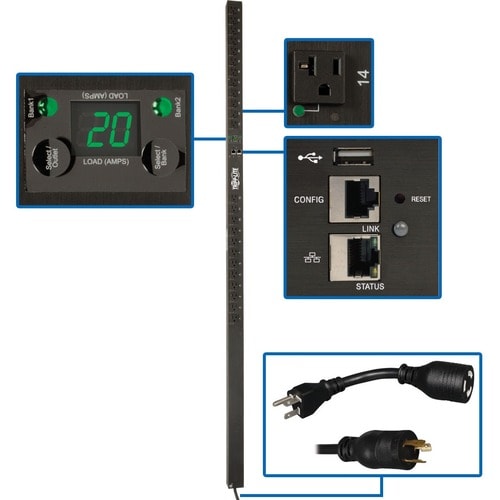

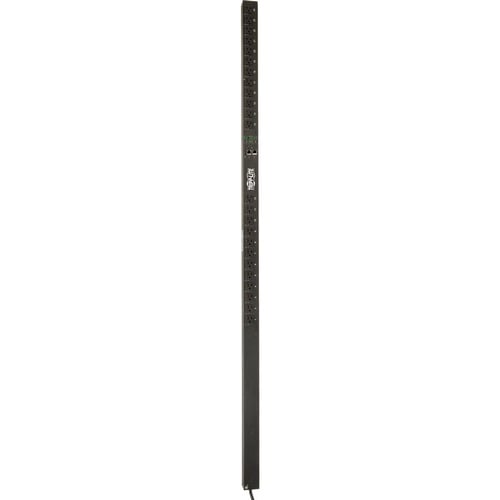

The PDUMVR20NETLX 1.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

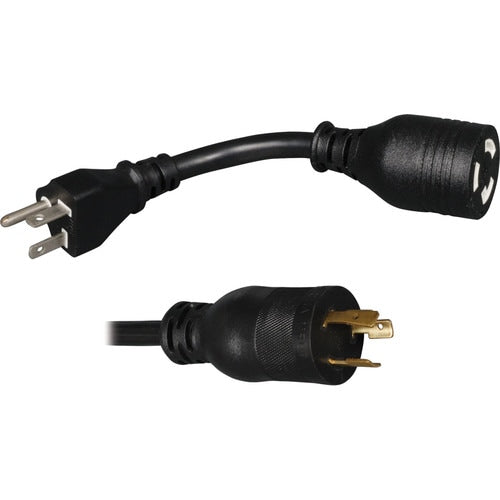

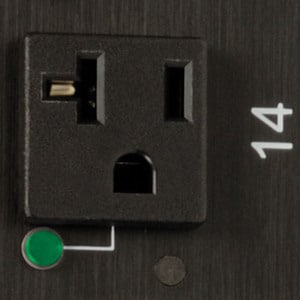

The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS.

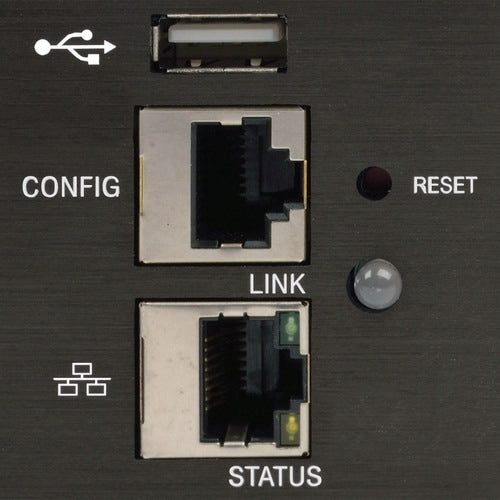

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

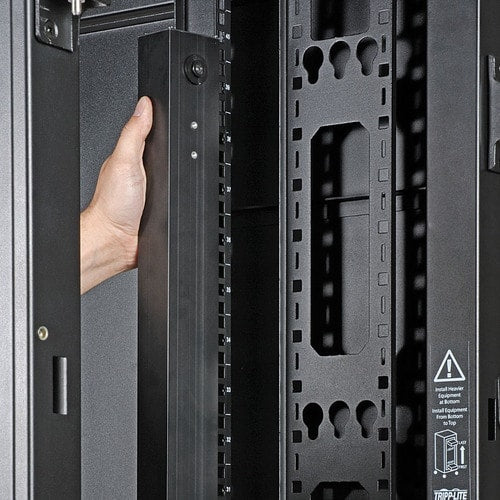

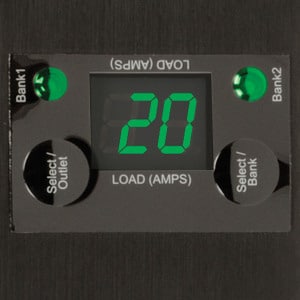

A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.
The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-20P plug and optional 5-20P adapter connects the PDU to an AC source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each load bank's current, each outlet's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The switched PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.
More from the Manufacturer
Key Features
- 1.9kW 120V single-phase switched 70-inch 0U PDU
- 24 controllable NEMA 5-15/20R outlets in 2 load banks
- Built-in Java-free LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- 10 ft. power cord with NEMA L5-20P plug and 5-20P adapter
Dimensions
| Height | 4.53 inches |
|---|---|
| Width | 6.1 inches |
| Length | 75.78 inches |
| Weight | 14.93 pounds |
| Product Type | PDU |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Input Current | 20 A |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA 5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| TAA Compliant | Yes |
| PDU Type | Switched |
| Mounting Orientation | Vertical |
| Power Rating (Watt) | 2030 W |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | PDU |
| Manufacturer Part Number | PDUMVR20NETLX |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMVR20NETLX |
| Product Name | PDUMVR20NETLX 24-Outlet PDU |
| Brand Name | Eaton |
| Management | Protocols:
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 9.60 lb |
| Rack Height | 0U |
| Height | 70" |
| Width | 2.2" |
| Depth | 2" |
| Mounting Orientation | Vertical |
| Input Current | 20 A |
| Power Rating (Watt) | 2030 W |
| Plug/Connector Type | NEMA 5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
