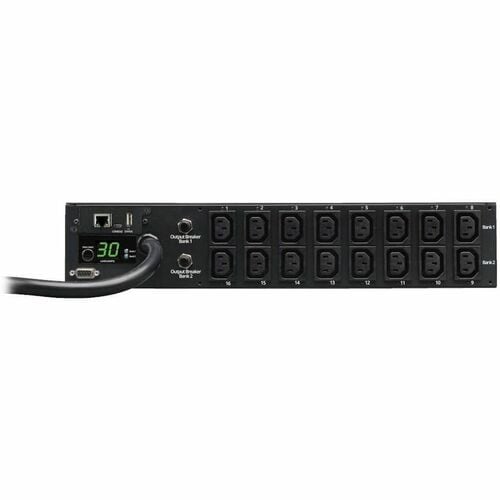

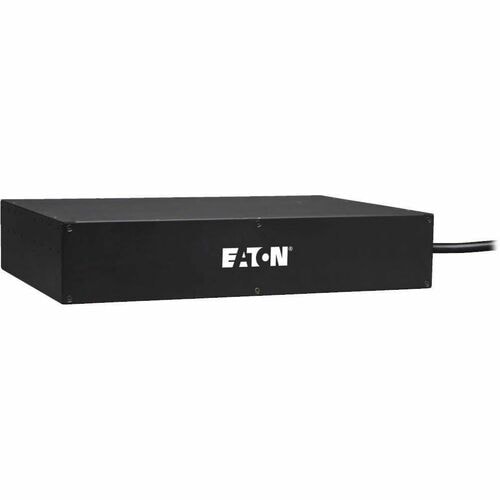

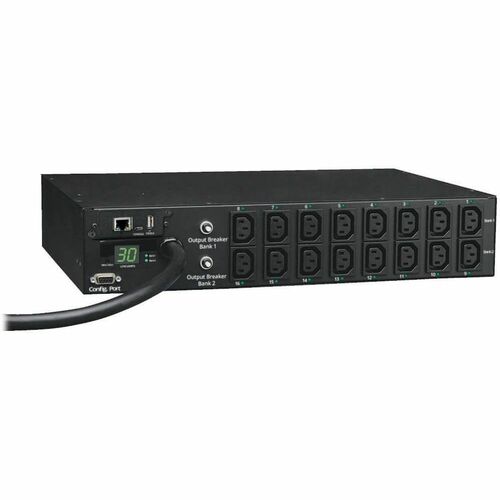

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip
More from the Manufacturer
Key Features
- Switched 30A 208/240V PDU, 2U horizontal rackmount format
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- NEMA L6-30P input plug with attached 12 ft. / 3.6m line cord
- 16 switched C13 outlets with cord retention brackets
- Temperature, humidity and contact closure monitoring options
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
Dimensions
| Height | 8 inches |
|---|---|
| Width | 20.5 inches |
| Length | 17 inches |
| Weight | 16.8 pounds |
| Product Type | PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Mount Type | Rack-mountable |
| Protection Type | Overload Protection |
| Rack Height | 2U |
| Brand Name | Eaton |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 208 V AC - 240 V AC |
| Receptacle Type | IEC 60320 C13 |
| TAA Compliant | Yes |
| PDU Type | Switched |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH30HVNET |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH30HVNET |
| Product Name | PDUMH30HVNET PDU Switched 208V - 240V 30A 16 Outlet |
| Brand Name | Eaton |
| Management | Protocols:
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 13.80 lb |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17.5" |
| Depth | 12.5" |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
