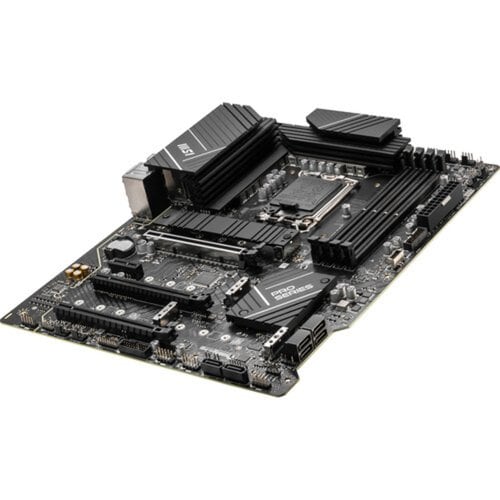

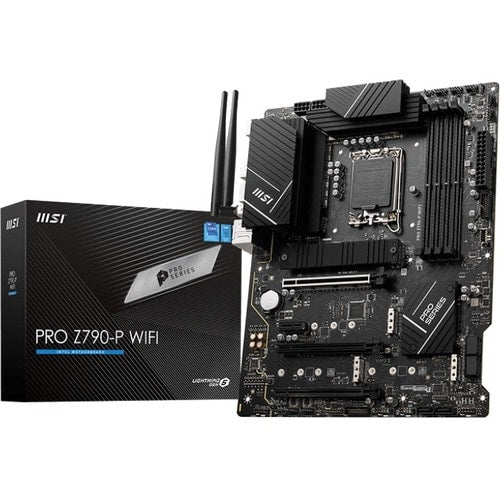

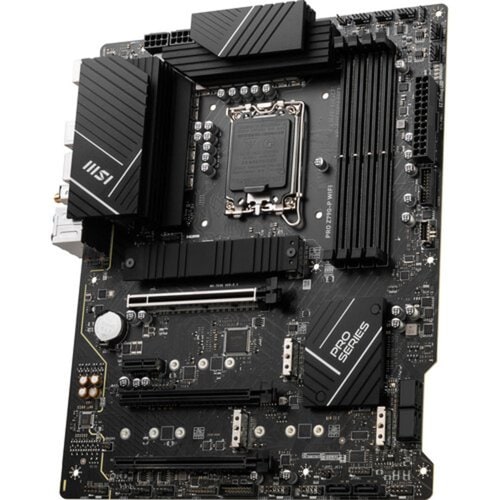

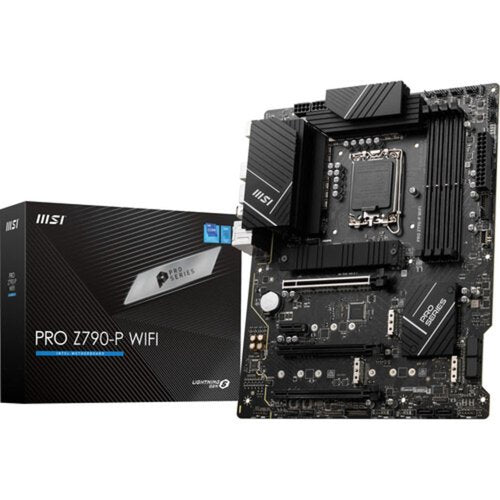

PRO Z790-P WIFI
PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Key Features
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 10.7 inches |
| Length | 13 inches |
| Weight | 3.44 pounds |
| Audio Channels | 7.1 |
| Product Type | Desktop Motherboard |
| Maximum Memory Supported | 128 GB |
| Form Factor | ATX |
| Processor Supported | Core i7 |
| Processor Supported | Core i9 |
| Processor Supported | Core i5 |
| Processor Supported | Core i3 |
| Processor Supported | Celeron |
| Processor Supported | Pentium Gold |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | MSI |
| Memory Technology | DDR5 SDRAM |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Number of Memory Slots | 4 |
| Bluetooth | Yes |
| Number of SATA Interfaces | 6 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 9 |
| Total Number of PCI Express Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of Onboard USB 3.2 Ports | 5 |
| 2.5Gigabit Ethernet | Yes |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | PROZ790PWIFI |
| Manufacturer Website Address | http://www.msi.com |
| Manufacturer | MSI |
| Product Model | Z790-P WIFI |
| Product Name | PRO Z790-P WIFI Desktop Motherboard |
| Product Series | PRO |
| Brand Name | MSI |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 5 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
| Total Number of Expansion Slots | 4 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Maximum Memory | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Package Contents |
|
| Country of Origin | China |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Processor Supported | Pentium Gold |
| Processor Supported | Celeron |
| Processor Supported | Core i9 |
| Processor Supported | Core i3 |
| Processor Supported | Core i7 |
| Processor Supported | Core i5 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 13th Gen |
| Onboard Video | CPU Dependent Video |
